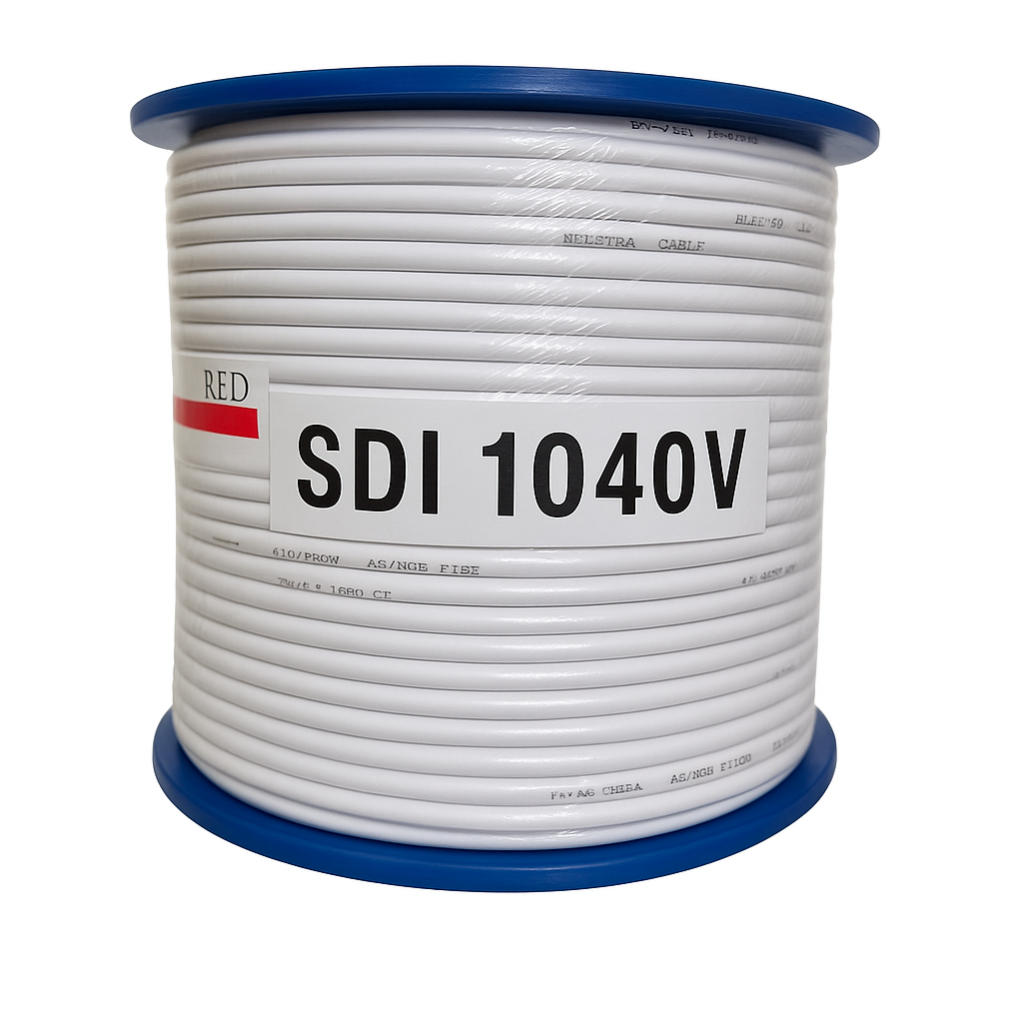

The ELECTRA 4mm² SDI Red Cable is a strong and adaptable single-core electrical cable that is intended for reliable power transmission in residential, commercial, and industrial settings. It is made with stranded annealed copper conductors, which makes it easier to install and provides better electrical conductivity. The cable has a strong 3V90 PVC jacket that offers superb resistance to mechanical harm and environmental elements, as well as heat-resistant PVC V90 insulation. This cable meets Australian standards AS/NZS 1125 and AS/NZS 5000. 2, which ensure quality and safety. It is rated for 450/750 volts and may be used securely at temperatures up to 90°C.
Features:
Conductor Size: 4 mm², ideal for use in medium current applications.
Material for Conductor: Stranded, annealed copper for greater flexibility and superior conductivity.
Heat-resistant PVC V90 insulation for protection and longevity.
Sheath: Durable 3V90 PVC outer sheath that offers mechanical and environmental protection.
Voltage Rating: 450/750V, appropriate for a variety of electrical systems.
Rated for safe operation at temperatures up to 90°C.
Main Color: Red for simple identification in wiring systems.
Length: 100 meters per roll, ideal for a variety of cabling applications.
Compliance: complies with Australian standards AS/NZS 1125 and AS/NZS 5000. 2.
Applications: Ideal for electrical installations in houses, businesses, and factories.
Applications:
Among the many electrical installations for which this cable is appropriate are:
Household wiring: electrical and lighting circuits.
Commercial Installations: Retail establishments, offices, and other business premises.
Industrial Uses: Factories and industrial facilities.
| Specification |
Details |
| Product Name |
Electra 4mm² Red SDI Cable 100m |
| Model Number |
SDI1040V |
| Conductor Size |
4 mm² |
| Conductor Material |
Stranded annealed copper |
| Insulation Material |
PVC V-90 |
| Sheath Material |
3V-90 PVC |
| Core Colour |
Red |
| Sheath Colour |
White |
| Voltage Rating |
450/750V |
