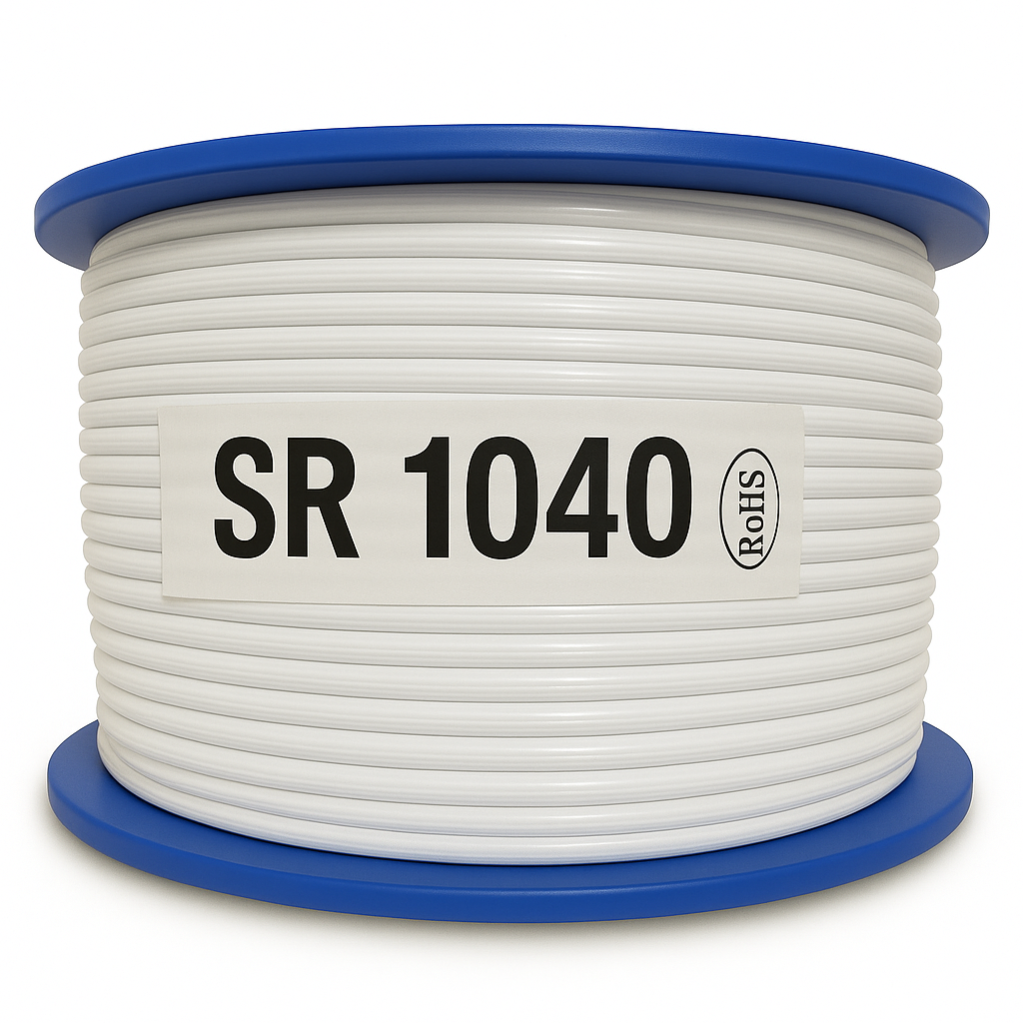

The Electra SR1040 is a high-quality 4mm² single-core white building wire made with premium plain annealed copper and insulated with durable V90 PVC. It's perfect for a wide range of electrical uses, whether you're working on switchboards, control panels, or require a dedicated earth wire in installations that are safely out of reach. Where performance, safety, and flexibility are paramount, it is ideal for both domestic and business settings.
Key Attributes:
Outstanding copper conductor: seven strands of 0. 85 mm plain annealed copper were employed for flexibility and excellent conductivity.
Long-lasting insulation: V90 PVC insulation offers heat resistance and lasting protection.
Performance-based rating: capable of handling voltages of up to 0. 6/1 kV and operating safely at temperatures up to 90°C.
Compliant with the AS/NZS 3808, AS/NZS 5000. 1, and AS/NZS 1125 standards.
Flexible applications: perfect for use as an earth conductor in switchboard wiring, control panels, and enclosed systems.
smooth white hue: The finish is tidy and professional, making it easy to recognize in multiwire setups.
Serenity: It has a one-year warranty to give you more peace of mind.
| Specification |
Details |
| Conductor Size |
4 mm² (7/0.85 mm strands) |
| Color |
White |
| Length |
100 meters |
| Insulation Thickness |
1 mm |
| Minimum Bending Radius |
20 mm |
| Nominal Outer Diameter |
4.6 mm |
| Approximate Mass |
51 kg/km |
| Current Rating |
30 Amps |
| Conductor Resistance |
DC: 4.61 Ω/km, AC: 5.61 Ω/km |
