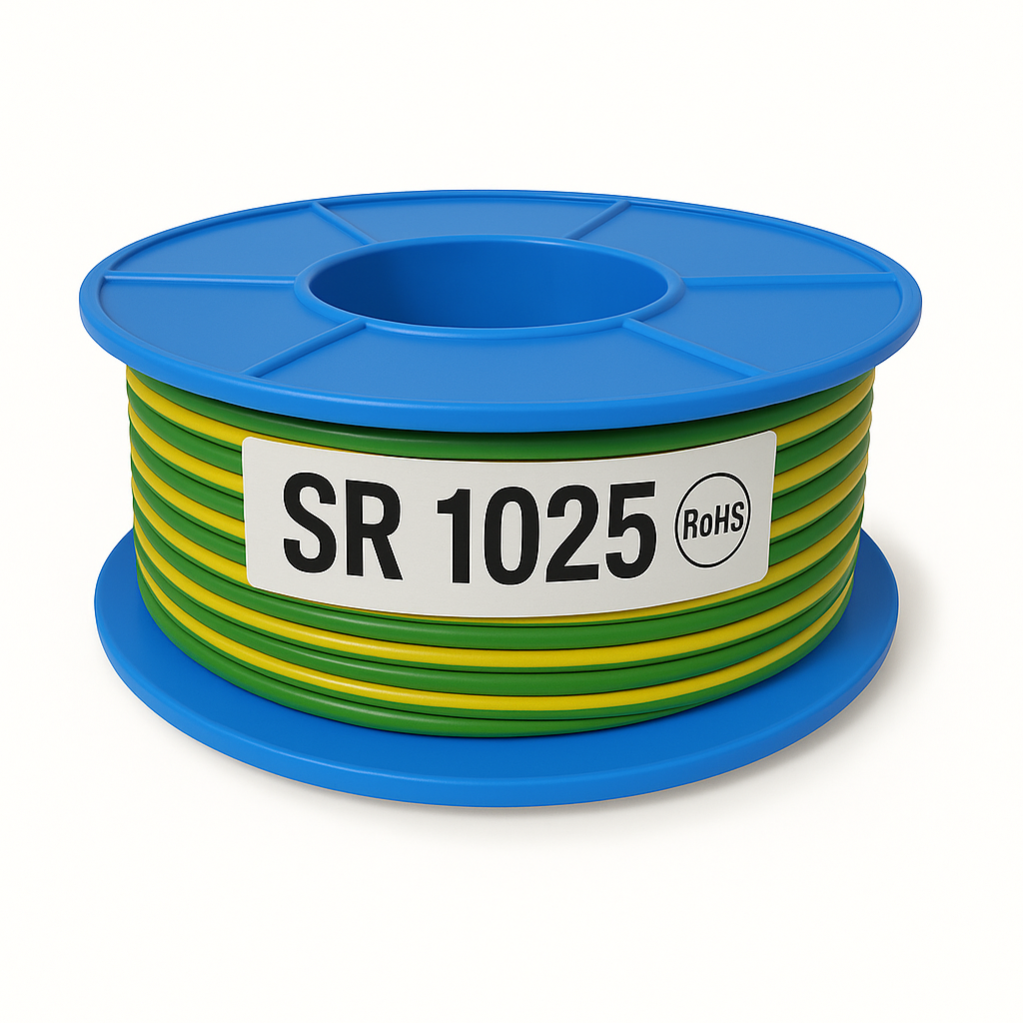

The Electra SR1025 is a premium single-core earth building wire that may be used in a variety of electrical applications. This cable provides reliable performance that you can rely on, whether you're installing a control panel, wiring a switchboard, or installing a separate ground conductor.
It is designed to withstand temperatures of 90°C and voltages of 0. 6/1 kV, and it is made with plain annealed copper for maximum conductivity and coated with sturdy V90 PVC insulation. This indicates that it is not only versatile and simple to use, but also strong enough to handle residential and commercial applications.
Important Features:
High Conductivity: Plain annealed copper is used to make it, which makes for effective power transmission.
Long-Lasting Insulation: V90 PVC is resistant to heat, moisture, and wear.
Voltage Rating: Easily manages voltages up to 0. 6/1 kV.
Heat Resistant: Intended for use in temperatures up to 90°C.
Meets AS/NZS 1125, 5000. 1, and 3808 requirements for compliance and certification.
Numerous Uses: Ideal for earth conductors, control panels, and switchboards.
Finish: Sleek earth color.
Warranty: One Year
| Specification |
Details |
| Conductor Size |
2.5mm² (7/0.67 mm strands) |
| Length |
100 meters |
| Insulation Thickness |
0.8 mm |
| Minimum Bending Radius |
15 mm |
| Nominal Outer Diameter |
3.6 mm |
| Approximate Mass |
32 kg/km |
| Current Rating |
22 Amps |
| Conductor Resistance |
DC: 7.41 Ω/km, AC: 9.01 Ω/km |
.png)
.jpg)
