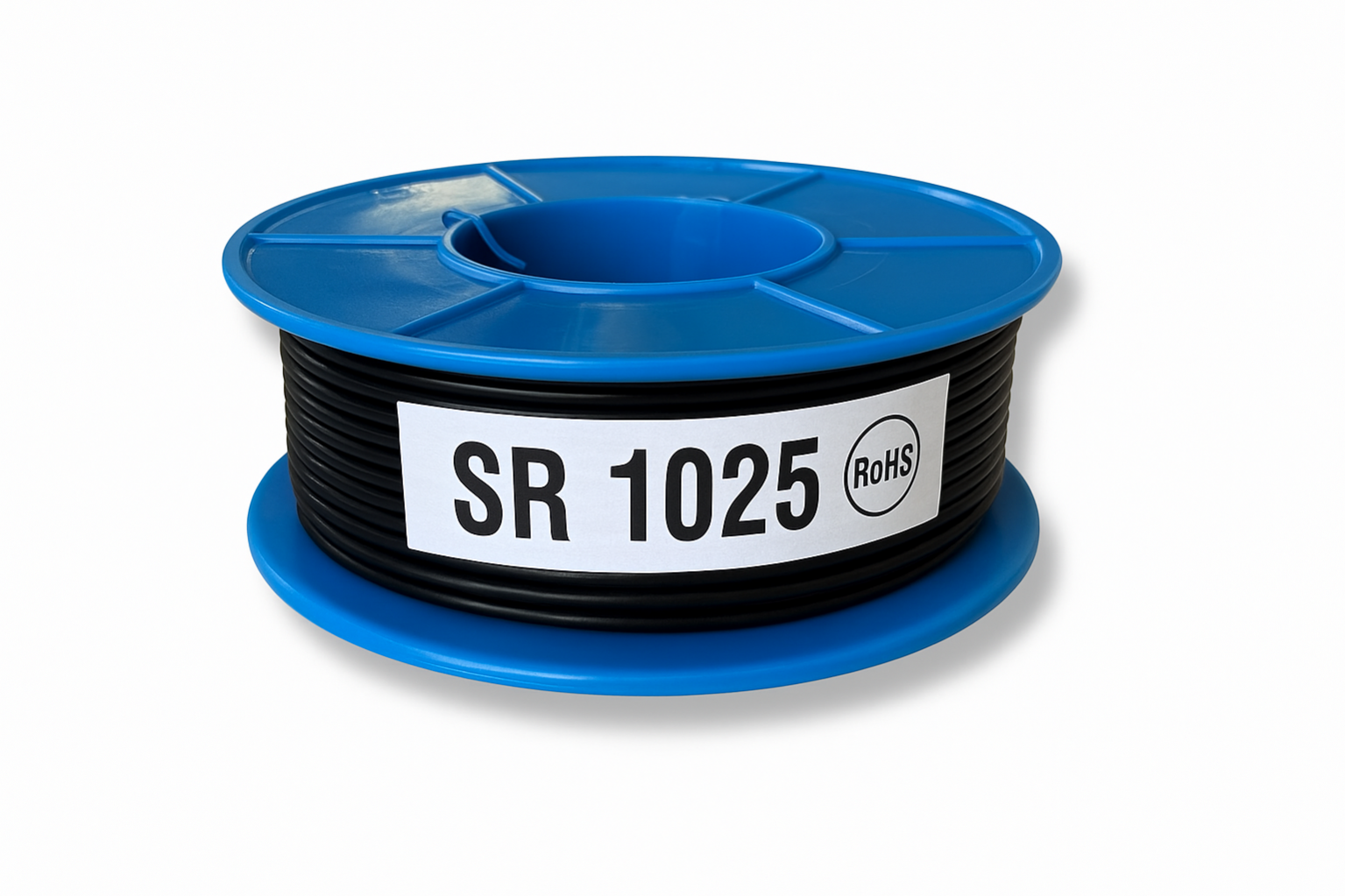

The Electra SR1025 is a premium single-core black building wire that works well in a variety of electrical applications. This wire provides reliable performance that you can rely on, regardless of whether you're installing a switchboard, configuring a control panel, or installing a separate earth conductor.
It is made to withstand temperatures of up to 90°C and 0. 6/1 kV thanks to its construction using plain annealed copper for exceptional conductivity and robust V90 PVC for insulation. This indicates that it is not only versatile and simple to use, but also robust enough for use in residential and commercial applications.
Key Features:
Excellent Conductivity: Constructed using bare annealed copper to optimize power transfer.
Long-lasting Insulation: V90 PVC is resistant to wear, heat, and moisture.
Voltage Rating: Can easily handle voltages up to 0. 6/1 kV.
Heat Resistant: Intended to function in temperatures as high as 90°C.
Complies with AS/NZS 1125, 5000. 1, and 3808 standards.
Versatile Applications: Perfect for ground conductors, control panels, and switchboards.
The finish is a beautiful, smooth black.
Warranty: One year
| Specification |
Details |
| Conductor Size |
2.5mm² (7/0.67 mm strands) |
| Length |
100 meters |
| Insulation Thickness |
0.8 mm |
| Minimum Bending Radius |
15 mm |
| Nominal Outer Diameter |
3.6 mm |
| Approximate Mass |
32 kg/km |
| Current Rating |
22 Amps |
| Conductor Resistance |
DC: 7.41 Ω/km, AC: 9.01 Ω/km |
.png)
.jpg)
