This 16mm² Electra building wire is a strong, dependable cable constructed of premium tinned copper and coated with robust PVC V90 insulation. It is designed to withstand voltages up to 1,000 volts, making it ideal for electrical applications where wires are hidden or difficult to reach, such as inside switchboards or control panels. It is particularly appropriate for setups where cables need to be securely entered through glands.
Main Features:
Strong Conductor: Composed of seven 1. 7mm tinned copper strands, it has exceptional conductivity and is corrosion-resistant.
Sturdy Insulation: Protected by PVC V90, which conforms to AS/NZS 3808 and ensures safety and longevity.
Rated for up to 0. 6/1kV, it is capable of handling high voltage and is ideal for use in homes, businesses, and factories.
Designed for Heat: It is prepared for hot conditions because it can tolerate temperatures up to 90°C.
Standards Accepted: Complies with the Australian standards AS/NZS 1125 and AS/NZS 5000. 1.
Color Options: Offered in black, red, blue, white, and green/yellow (earth) to complement any cabling configuration.

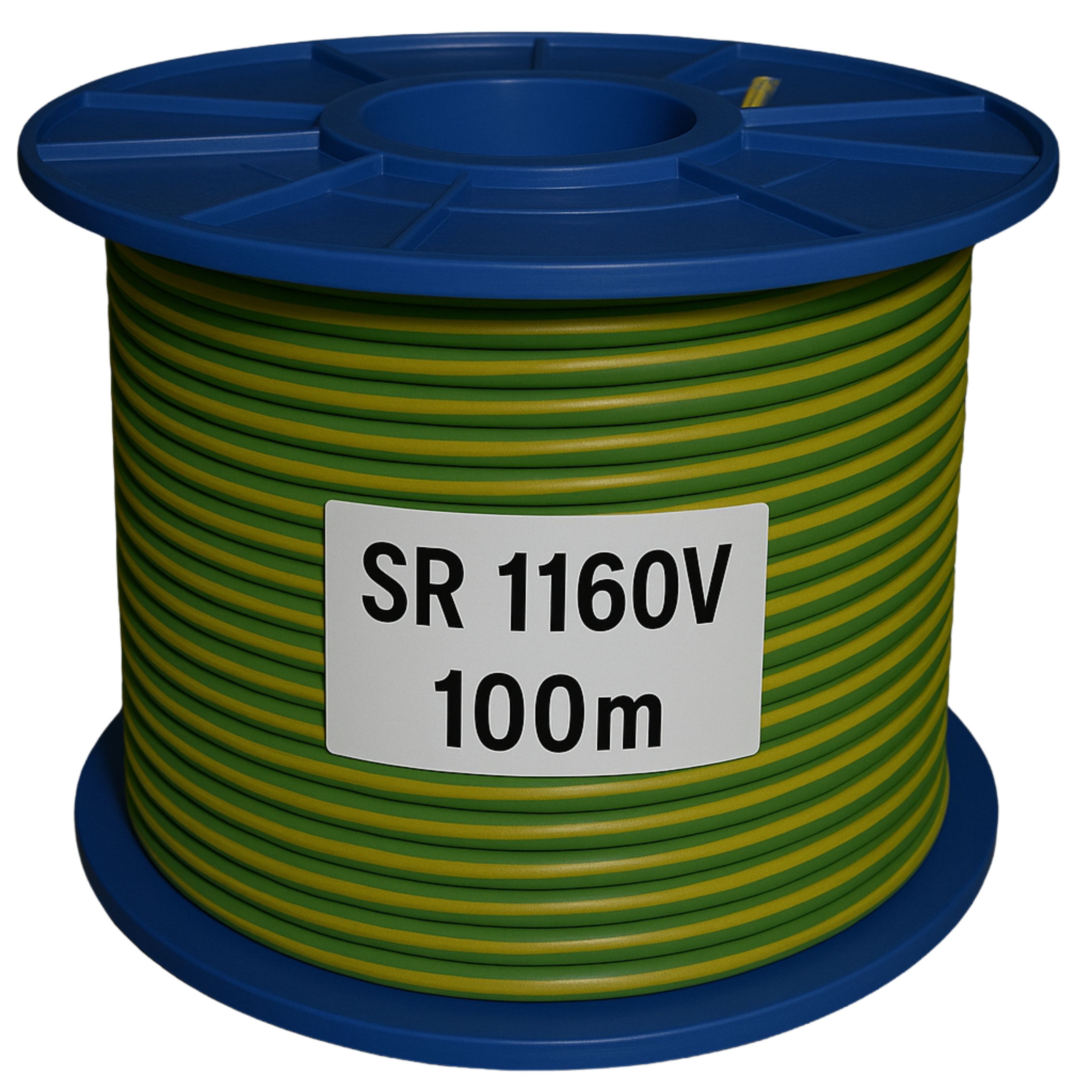

Practical Length: Available in a 100-meter roll, which is simple to trim and set up as necessary.
| Specification |
Details |
| SKU |
SR1160 |
| Cable Size |
16mm² |
| Stranding |
7/1.7mm |
| Overall Diameter |
Approximately 7.1mm |
| Minimum Bend Radius |
30mm |
| Insulation Material |
PVC V90 |
| Conductor Material |
Tinned Copper |
| Voltage Rating |
0.6/1 kV |
| Operating Temperature |
Up to 90°C |
| Standards Compliance |
AS/NZS 1125, AS/NZS 5000.1, AS/NZS 3808 |
