Premium building wire is made with a single-core, stranded copper conductor and long-lasting V90 PVC insulation. It works well for fixed wiring in homes, workplaces, and factories. This wire provides dependable performance and safety whether you're working on switchboards, control panels, or power distribution. You may depend on it for trustworthy electrical installations because it adheres to AS/NZS 5000. 1.
Major Attributes:
Robust Copper Structure: Stranded annealed copper with seven 0. 50 mm strands for flexibility and durability.
Excellent Insulation: The V90 PVC insulation surrounding the conductor can tolerate temperatures up to 90°C.
The best voltage rating for the majority of low-voltage electrical systems is 0. 6/1 kV.
Current Capacity: Successfully handles up to 16 amps.
Color: A glossy finish in black.

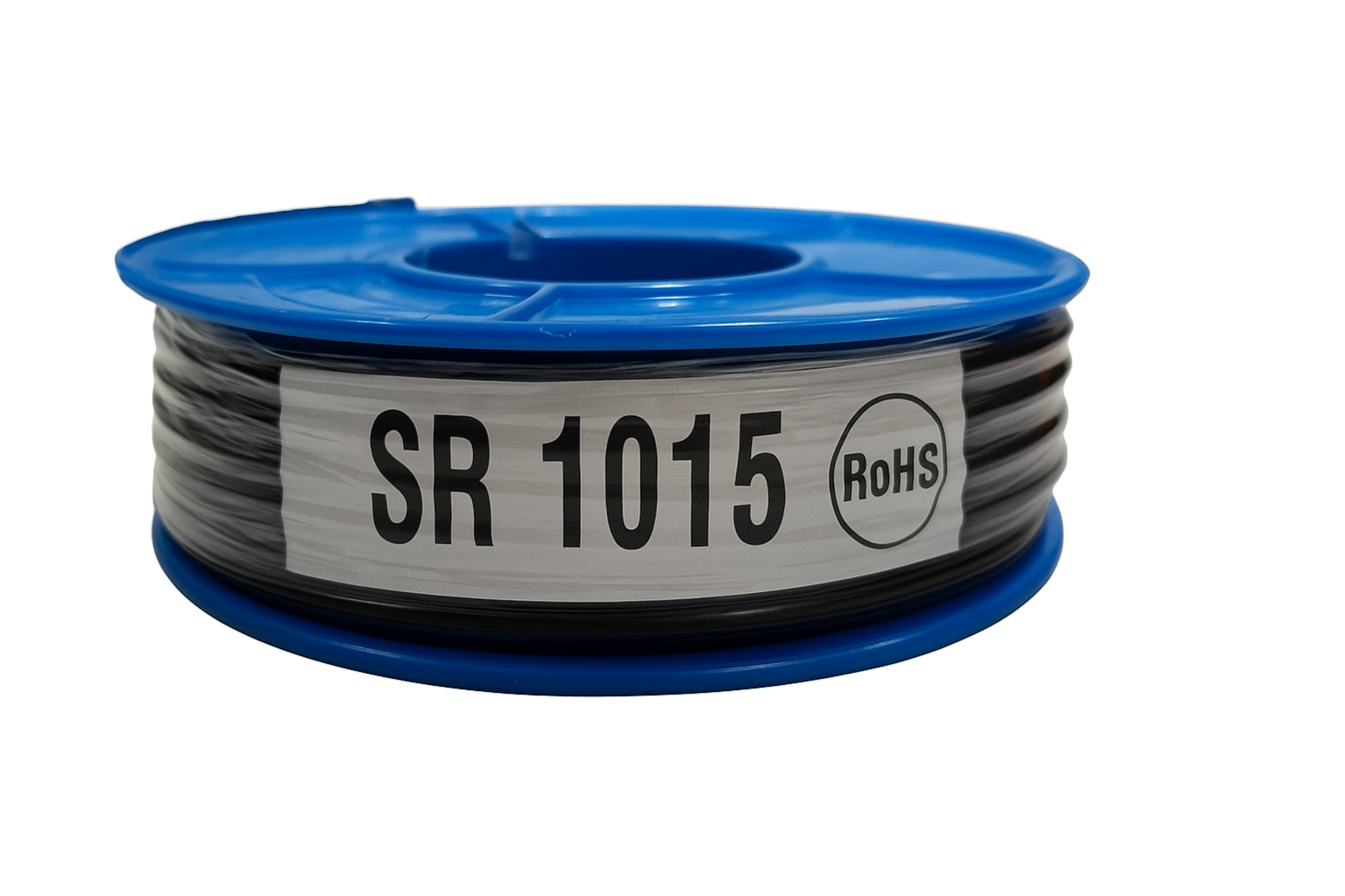

Length: Comes in a convenient 100-meter roll.
Standards Compliant: Designed to meet the safety and quality standards of AS/NZS 5000. 1, AS/NZS 3808, and AS/NZS 1125.
Specification |
Details |
Conductor Size |
1.5 mm² |
Stranding |
7/0.50 mm |
Insulation Thickness |
0.8 mm |
Overall Diameter |
3.1 mm |
Minimum Bending Radius |
15 mm |
Conductor Resistance (DC) |
13.6 Ohm/km |
Conductor Resistance (AC) |
16.5 Ohm/km |
Operating Temperature |
Up to 90°C |
Weight |
Approximately 2.135 kg per roll |
