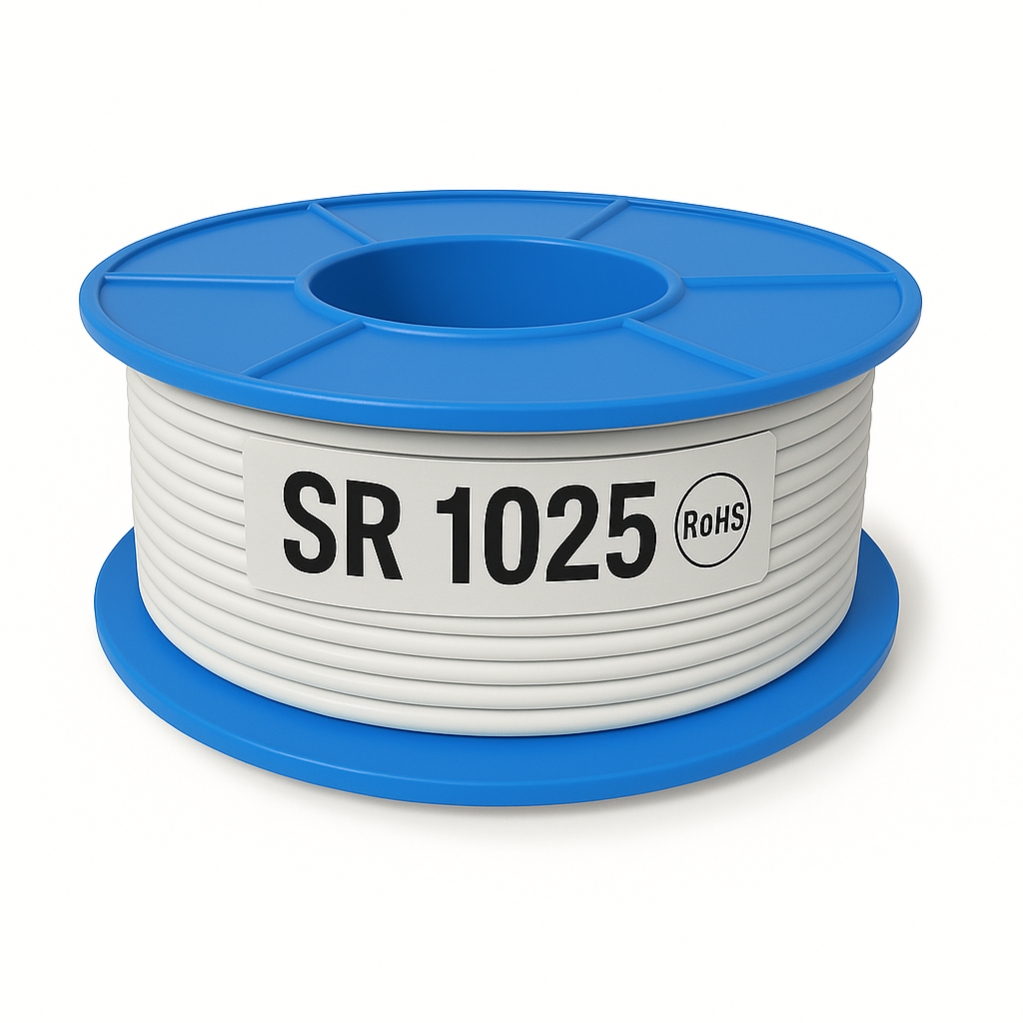

The high-quality single-core white building wire known as the Electra SR1025 is ideal for many different electrical applications. This wire offers reliable performance you can rely on, whether you're installing a control panel, wiring a switchboard, or installing a separate ground conductor.
It is designed to withstand temperatures as high as 90°C and voltages up to 0. 6/1 kV since it is made of plain annealed copper for exceptional conductivity and insulated with sturdy V90 PVC. This implies that it is not just adaptable and simple to use, but also strong enough for use in both domestic and business applications.
Key characteristics:
High Conductivity: Plain annealed copper is used to ensure effective power transmission.
Resilient Insulation: V90 PVC is resistant to heat, moisture, and wear.
Voltage Rating: Capable of handling voltages up to 0. 6/1 kV without any issues.
Heat Resistant: Can withstand temperatures up to 90°C.
Meets AS/NZS 1125, 5000. 1, and 3808 standards.
Versatile Applications: Ideal for earth conductors, control panels, and switchboards.
Color: Elegant white finish.
Warranty: 1 year
| Specification |
Details |
| Conductor Size |
2.5mm² (7/0.67 mm strands) |
| Length |
100 meters |
| Insulation Thickness |
0.8 mm |
| Minimum Bending Radius |
15 mm |
| Nominal Outer Diameter |
3.6 mm |
| Approximate Mass |
32 kg/km |
| Current Rating |
22 Amps |
| Conductor Resistance |
DC: 7.41 Ω/km, AC: 9.01 Ω/km |
