Superior construction wire with a single-core, stranded copper conductor covered with durable V90 PVC insulation. It's ideal for permanent cabling in residential, commercial, and industrial environments. No matter if you're working on power distribution, switchboards, or control panels, this wire offers consistent safety and performance. You can rely on it for trustworthy electrical installations because it adheres to AS/NZS 5000. 1.
Principal Characteristics:
Robust Copper Construction: Stranded annealed copper (7 0. 50 mm strands) for durability and flexibility.
Superior Insulation: Protected by V90 PVC insulation, which can withstand temperatures up to 90°C.
The best rating for most low-voltage electrical systems is Voltage: 0. 6/1 kV.
Effective current handling capacity: up to 16 amps.
The finish is a beautiful white.

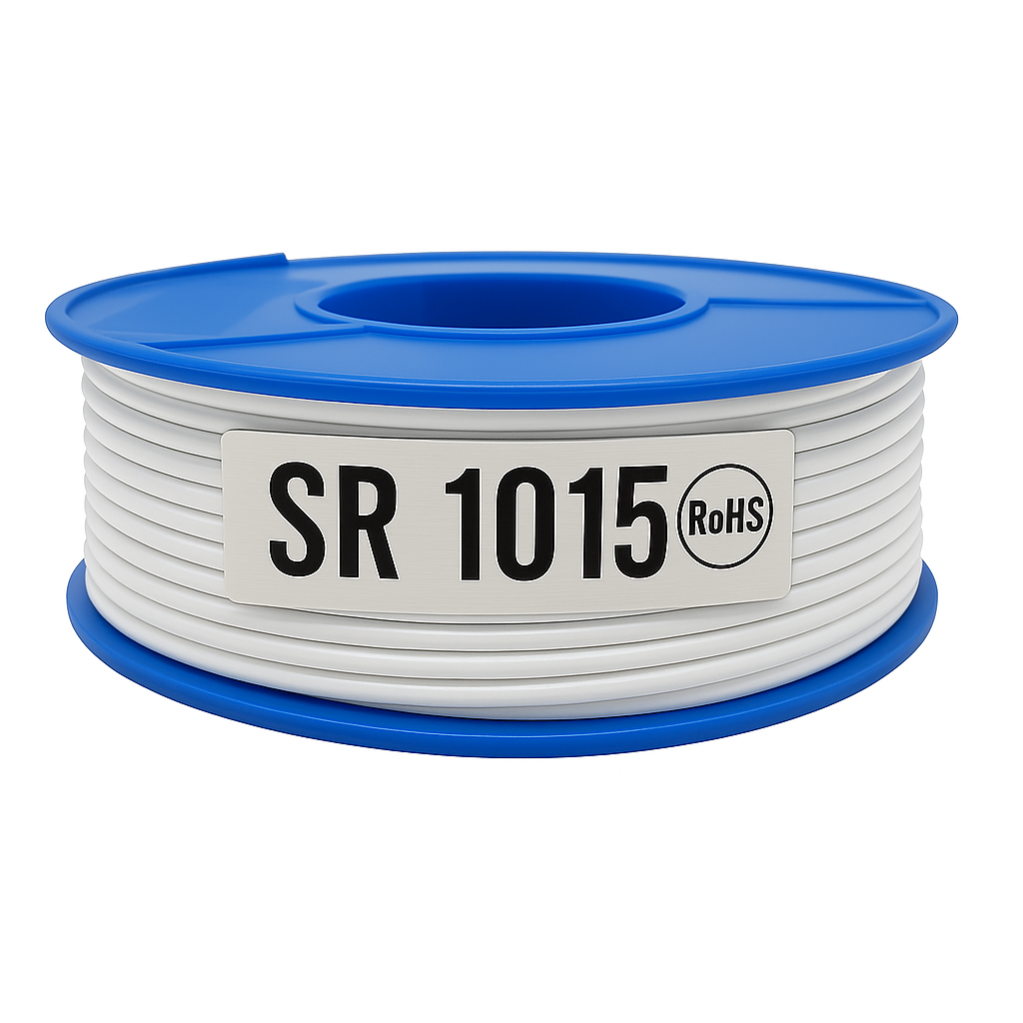

Length: It is available in a practical 100-meter roll.
Compliant with Standards: Built to meet the safety and quality criteria of AS/NZS 5000. 1, AS/NZS 3808, and AS/NZS 1125.
Specification |
Details |
Conductor Size |
1.5 mm² |
Stranding |
7/0.50 mm |
Insulation Thickness |
0.8 mm |
Overall Diameter |
3.1 mm |
Minimum Bending Radius |
15 mm |
Conductor Resistance (DC) |
13.6 Ohm/km |
Conductor Resistance (AC) |
16.5 Ohm/km |
Operating Temperature |
Up to 90°C |
Weight |
Approximately 2.135 kg per roll |
