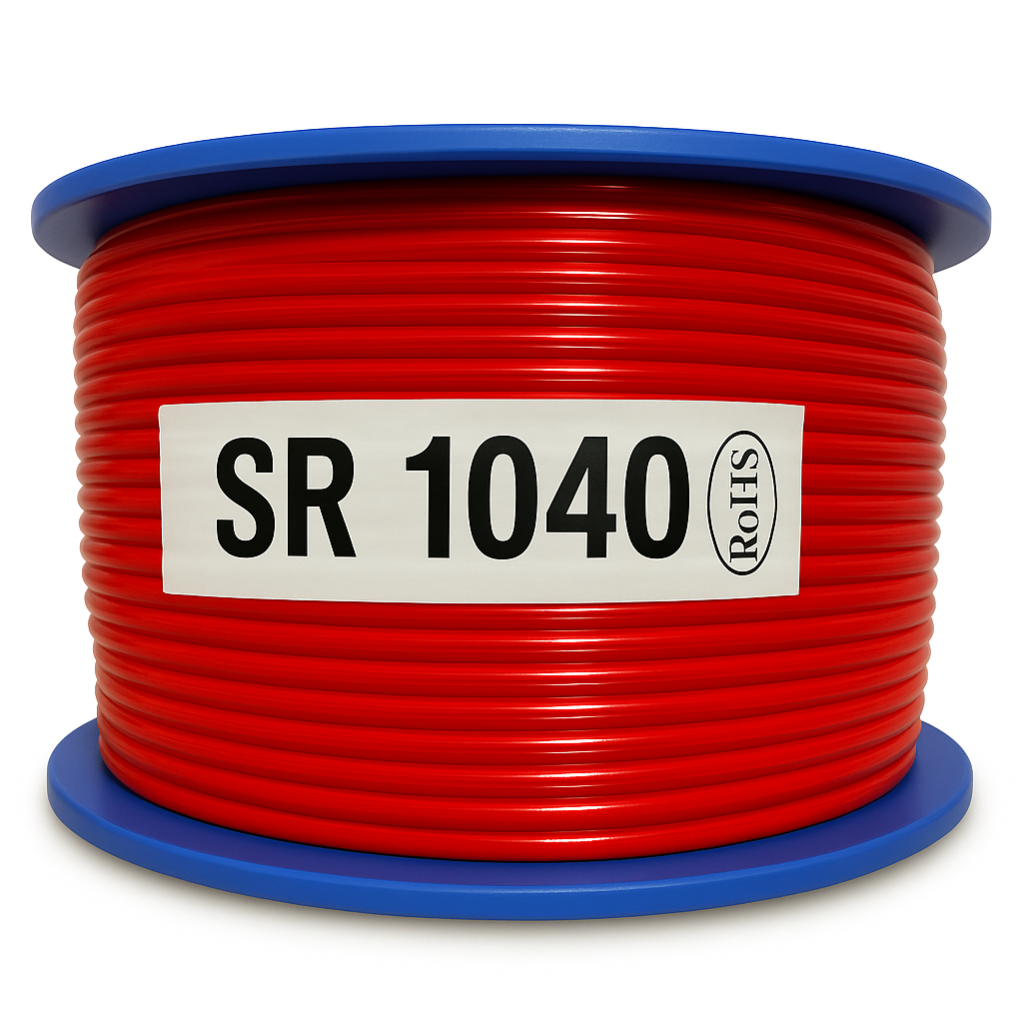

The Electra SR1040 is a high-quality 4mm² single-core red building wire manufactured using high-grade plain annealed copper and insulated with durable V90 PVC. It is ideal for a wide range of electrical applications, including switchboards, control panels, and dedicated earth wires in installations that are kept safely out of reach. It's ideal for business and home settings where flexibility, safety, and performance are paramount.
Key Characteristics:
Better copper conductor: To provide flexibility and efficient conductivity, seven strands of 0. 85 mm plain annealed copper were used.
Long-lasting insulation: V90 PVC insulation for enduring heat resistance and protection.
Performance-based rating: operates safely at temperatures up to 90°C and at voltages of up to 0. 6/1 kV.
built in compliance with AS/NZS 3808, AS/NZS 5000. 1, and AS/NZS 1125 standards.
Versatile applications: Perfect for usage in switchboard cabling, control panels, and enclosed systems as an earth conductor.
Glossy red color: The finish is neat and professional, making it easy to recognize in multiwire arrangements.
Serenity: To provide extra peace of mind, it has a one-year guarantee.
| Specification |
Details |
| Conductor Size |
4 mm² (7/0.85 mm strands) |
| Color |
Red |
| Length |
100 meters |
| Insulation Thickness |
1 mm |
| Minimum Bending Radius |
20 mm |
| Nominal Outer Diameter |
4.6 mm |
| Approximate Mass |
51 kg/km |
| Current Rating |
30 Amps |
| Conductor Resistance |
DC: 4.61 Ω/km, AC: 5.61 Ω/km |
