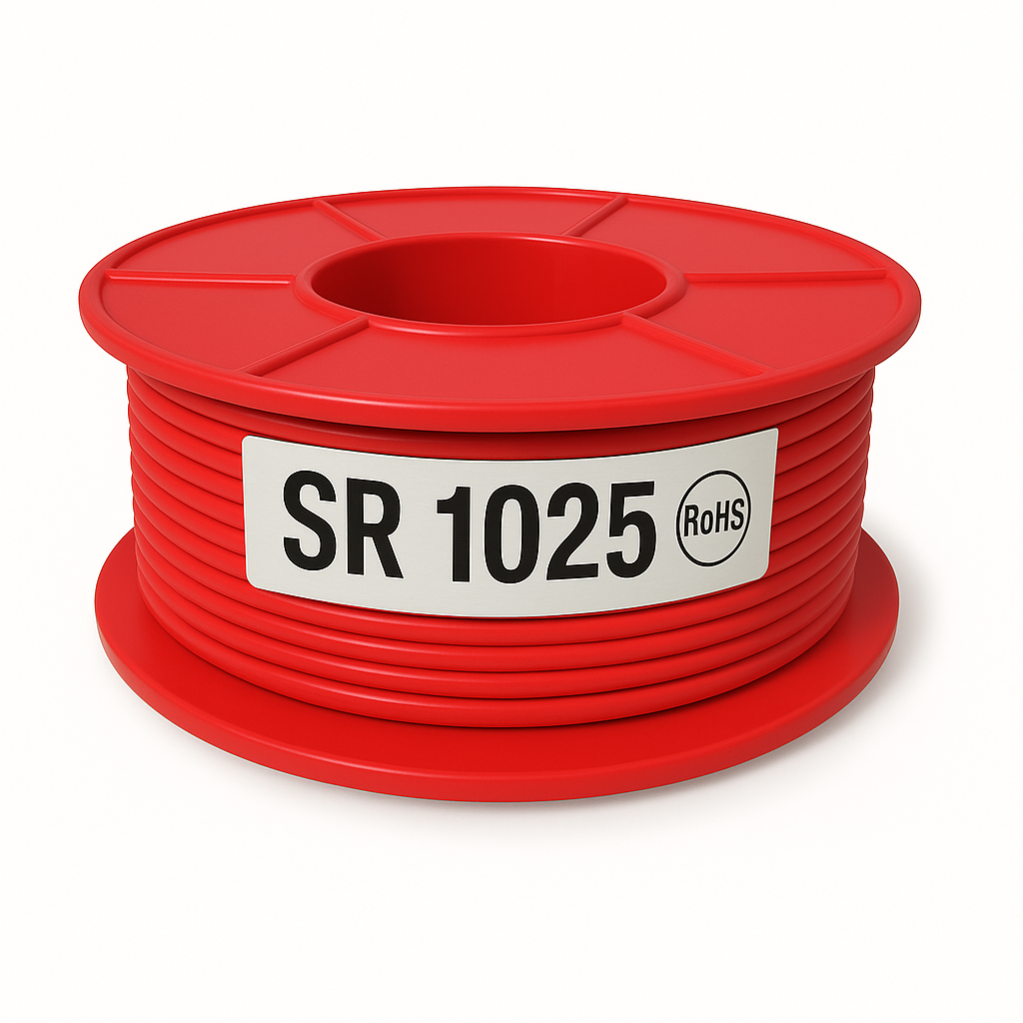

The Electra SR1025 is a premium red building wire with a single core that is ideal for a variety of electrical applications. This wire provides reliable performance that you can rely on, whether you're installing a control panel, wiring a switchboard, or installing a separate earth conductor.
It can withstand temperatures up to 90°C and voltages up to 0. 6/1 kV thanks to its construction, which includes plain annealed copper for high conductivity and a robust V90 PVC insulation. This indicates that it is both adaptable and simple to use, as well as robust enough for use in both domestic and business applications.
Key Features:
Excellent Conductivity: Made of simple annealed copper for optimum power transmission.
Tough Insulation: V90 PVC is resistant to heat, wear, and moisture.
Voltage Rating: Easily manages voltages up to 0. 6/1 kV.
Heat Resistant: Made to function in temperatures up to 90°C.
Compliant and certified: Satisfies the requirements of the AS/NZS 1125, 5000. 1, and 3808 standards.
Adaptable Uses: Ideal for earth conductors, control panels, and switchboards.
Color: Stylish red finish.
Warranty: One Year
| Specification |
Details |
| Conductor Size |
2.5mm² (7/0.67 mm strands) |
| Length |
100 meters |
| Insulation Thickness |
0.8 mm |
| Minimum Bending Radius |
15 mm |
| Nominal Outer Diameter |
3.6 mm |
| Approximate Mass |
32 kg/km |
| Current Rating |
22 Amps |
| Conductor Resistance |
DC: 7.41 Ω/km, AC: 9.01 Ω/km |
