This high-quality building wire features durable V90 PVC insulation and a single-core, stranded copper conductor. It is ideal for fixed wiring in homes, commercial buildings, and manufacturing facilities. Whether you are working on switchboards, control panels, or power distribution, this wire provides dependable performance and safety. You may rely on it for dependable electrical installations because it adheres to AS/NZS 5000. 1.
Important characteristics:
Robust Copper Construction: Stranded annealed copper (7 0. 50 mm strands) for strength and flexibility.
Outstanding Insulation: Covered in V90 PVC insulation, which can handle temperatures up to 90°C.
The ideal rating for most low-voltage electrical systems is 0. 6/1 kV for voltage.
Effective Current Capacity: Capable of handling up to 16 Amps.

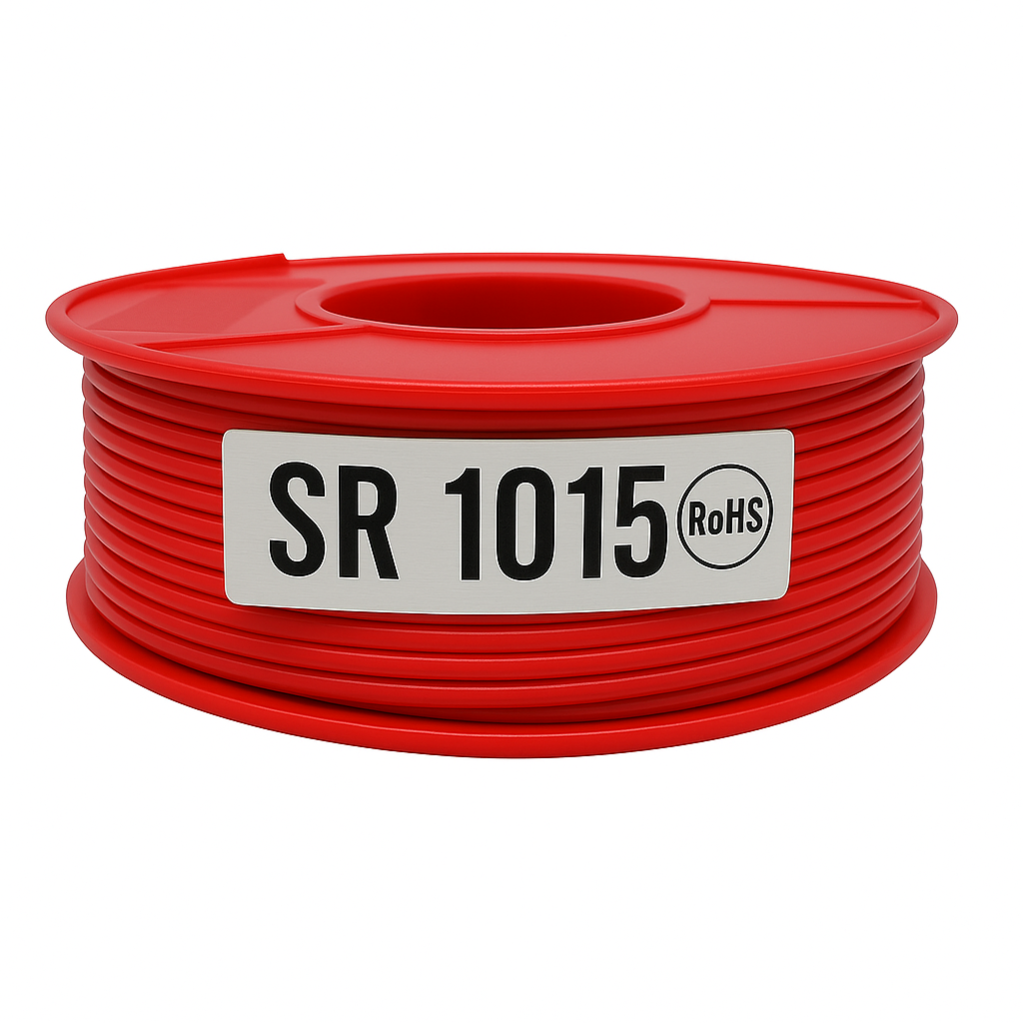

Red is the color of the finish.
Length: available on a convenient 100-meter roll.
Complies with Standards: Built in accordance with the safety and quality standards of AS/NZS 5000. 1, AS/NZS 3808, and AS/NZS 1125.
| Specification |
Details |
| Conductor Size |
1.5 mm² |
| Stranding |
7/0.50 mm |
| Insulation Thickness |
0.8 mm |
| Overall Diameter |
3.1 mm |
| Minimum Bending Radius |
15 mm |
| Conductor Resistance (DC) |
13.6 Ohm/km |
| Conductor Resistance (AC) |
16.5 Ohm/km |
| Operating Temperature |
Up to 90°C |
| Weight |
Approximately 2.135 kg per roll |
