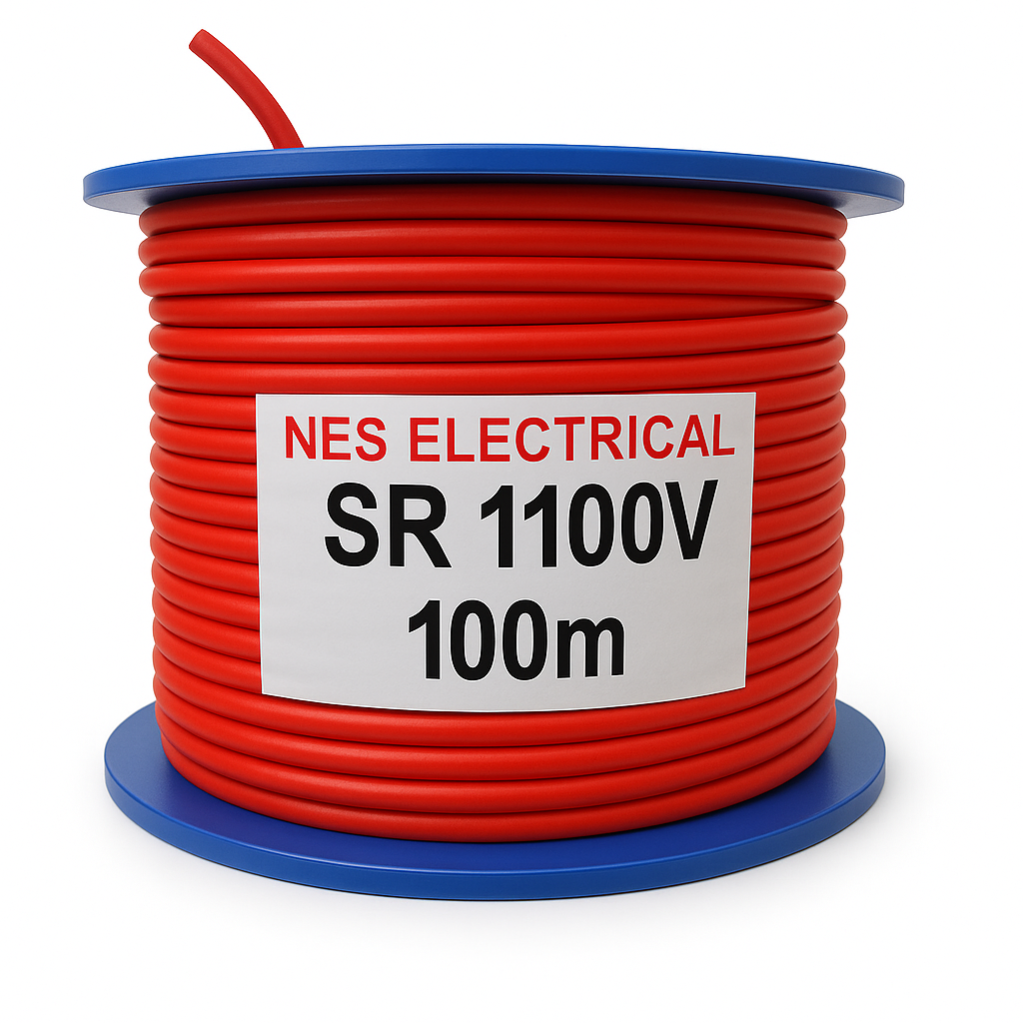

The ELECTRA RED 10MM2 BUILDING WIRE SR1100 100M is a great single-core electrical cable for a variety of building and electrical applications. It features a plain annealed copper conductor with long-lasting V90 PVC insulation, making it ideal for harsh conditions and general wiring. It is frequently used for separate earth conductors, switchboard and control panel wiring, and inside other enclosed equipment where the cable is not easily accessible without tools. It is produced in accordance with the applicable Australian and New Zealand standards, ensuring dependability and safety.
Critical features:
Plain annealed copper (often 7/1. 35mm stranding) should be used as the conductor material for optimal conductivity.
Polyvinyl chloride (PVC) insulation, often known as V90 PVC, is well-known for its strength and heat resistance. Additionally, some publications mention V90HT, which indicates a higher temperature rating.
The voltage range of 0. 6/1 kV makes it appropriate for use in common residential, commercial, and industrial electrical systems.
Temperature Range: It is designed to operate at a standard operating temperature of up to 90°C.
Compliance: Conforms to Australian and New Zealand standards, including AS/NZS 5000. 1, AS/NZS 3808, and AS/NZS 1125.
Red insulation is the ideal color for distinguishing between circuits, particularly when it comes to neutral or specific phase wiring that complies with local regulations.
Length: Available on a roll or in a practical 100-meter coil.
Ideal application: Ideal for devices where the wire is not exposed to mechanical damage, such as control panels, switchboards, and enclosed cabling. Additionally, it's perfect for glanding.
| Specification |
Details |
| Model Number |
SR1100 |
| Conductor Size |
10 mm² |
| Stranding |
7 strands of 1.35 mm |
| Overall Diameter |
6.1 mm |
| Insulation Thickness |
1.0 mm |
| DC Resistance |
1.83 Ohm/km |
| AC Resistance |
2.23 Ohm/km |
| Standards Compliance |
AS/NZS 1125, 3808, 5000.1 |
| Voltage Rating |
0.6/1 kV |
| Current Rating |
Around 53 Amp |
