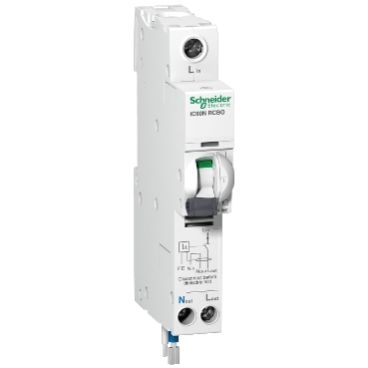

Dual Protection (RCBO)
Combines overcurrent protection (MCB function) and residual current protection (RCD function) in one unit, simplifying electrical protection.
Rated Current: 32 Amps
Provides protection for circuits carrying up to 32 Amps, ideal for larger residential or commercial installations.
1P+N (Single Pole + Neutral)
Protects both the live (phase) and neutral conductors, ensuring comprehensive protection for circuits with a neutral line.
Earth Leakage Sensitivity: 30mA
Offers 30mA earth leakage protection, suitable for general safety against electrical shocks and fire risks caused by leakage currents.
Type A Sensitivity
Type A means the RCBO detects both AC and pulsating DC residual currents, making it suitable for circuits with electronic devices such as dimmer switches, washing machines, and motor-driven equipment.
Tripping Curve: C Curve
The C Curve provides protection for circuits with moderate inrush currents, such as those from motors or other inductive loads, while avoiding unnecessary trips.
Short Circuit Breaking Capacity: 6kA
Capable of safely interrupting short-circuit fault currents up to 6kA, providing a high level of safety in the event of a fault.
Rated Operational Voltage: 230V AC
Designed for use in typical 230V single-phase AC circuits, making it suitable for most residential and light commercial electrical systems.
IP20 Protection Rating
Offers IP20 protection against accidental contact with live parts, enhancing safety during installation and operation.
DIN Rail Mounting
The RCBO is designed for easy DIN rail mounting, ensuring quick installation and space efficiency in electrical panels.
| Specification |
Details |
| Model Number |
A9D61832 |
| Brand |
Schneider Electric (Acti9 Series) |
| Product Type |
Residual Current Breaker with Overcurrent Protection (RCBO) |
| Poles |
1P+N (Single Pole + Neutral) |
| Rated Current |
32 Amps |
| Tripping Curve |
C Curve (for moderate inrush currents) |
| Earth Leakage Sensitivity |
30mA |
| Type |
Type A (Sensitive to AC and pulsating DC currents) |
| Rated Short-Circuit Breaking Capacity |
6kA (at 230V AC) |
| Rated Operational Voltage |
230V AC, 50/60 Hz |
| Rated Insulation Voltage |
400V AC |
| Rated Impulse Withstand Voltage |
4kV |
| Mounting |
DIN Rail (35mm standard) |
| Width |
1 module (18mm) |
| Operating Temperature Range |
-15°C to +60°C |
