AS/NZS 61009 Compliance: Meets Australian and New Zealand standards for residual current devices, ensuring safety and reliability.
Environmental Compliance: Designed to be RoHS compliant, ensuring minimal environmental impact.
Mounting: Easily mounts onto standard 35mm DIN rails, making installation straightforward in existing switchboards.
Wiring: Can be wired from the top or bottom, offering flexibility during installation.
Lockable Toggle: Features a lockable toggle in both the ON and OFF positions for added safety during maintenance.
Residential Installations: Ideal for protecting circuits in homes and apartments.
Light Commercial Applications: Suitable for small businesses and commercial spaces.
Modern Electrical Systems: Compatible with circuits that include electronic appliances generating pulsating DC leakage currents.

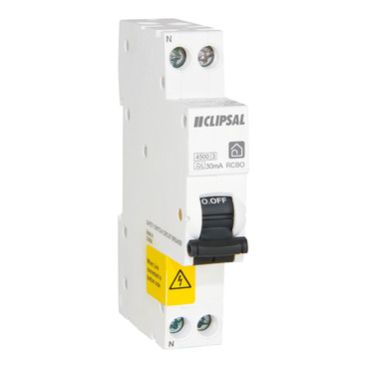

Parameter |
Specification |
Brand |
Clipsal by Schneider Electric |
Model Number |
4RCBE220/30S |
Series |
ResiMAX |
Device Type |
RCBO (Residual Current Breaker with Overcurrent) |
Poles |
1P+N (Single Pole + Neutral) |
Rated Current (In) |
20 Amps |
Tripping Curve |
C Curve |
Earth Leakage Sensitivity (IΔn) |
30 mA |
Residual Current Type |
Type A (Detects AC and pulsating DC leakage) |
Rated Voltage (Ue) |
240V AC, 50 Hz |
Rated Insulation Voltage (Ui) |
400V AC |
Rated Breaking Capacity (Icn) |
4.5 kA |
Rated Impulse Withstand Voltage |
4 kV |
Module Width |
1 module (18 mm) |
Mounting Type |
35mm DIN Rail |
Operating Temperature Range |
-5°C to +40°C |
Storage Temperature Range |
-40°C to +70°C |
IP Protection Rating |
IP20 (IP40 when enclosed) |
