Combination of MCB and RCD

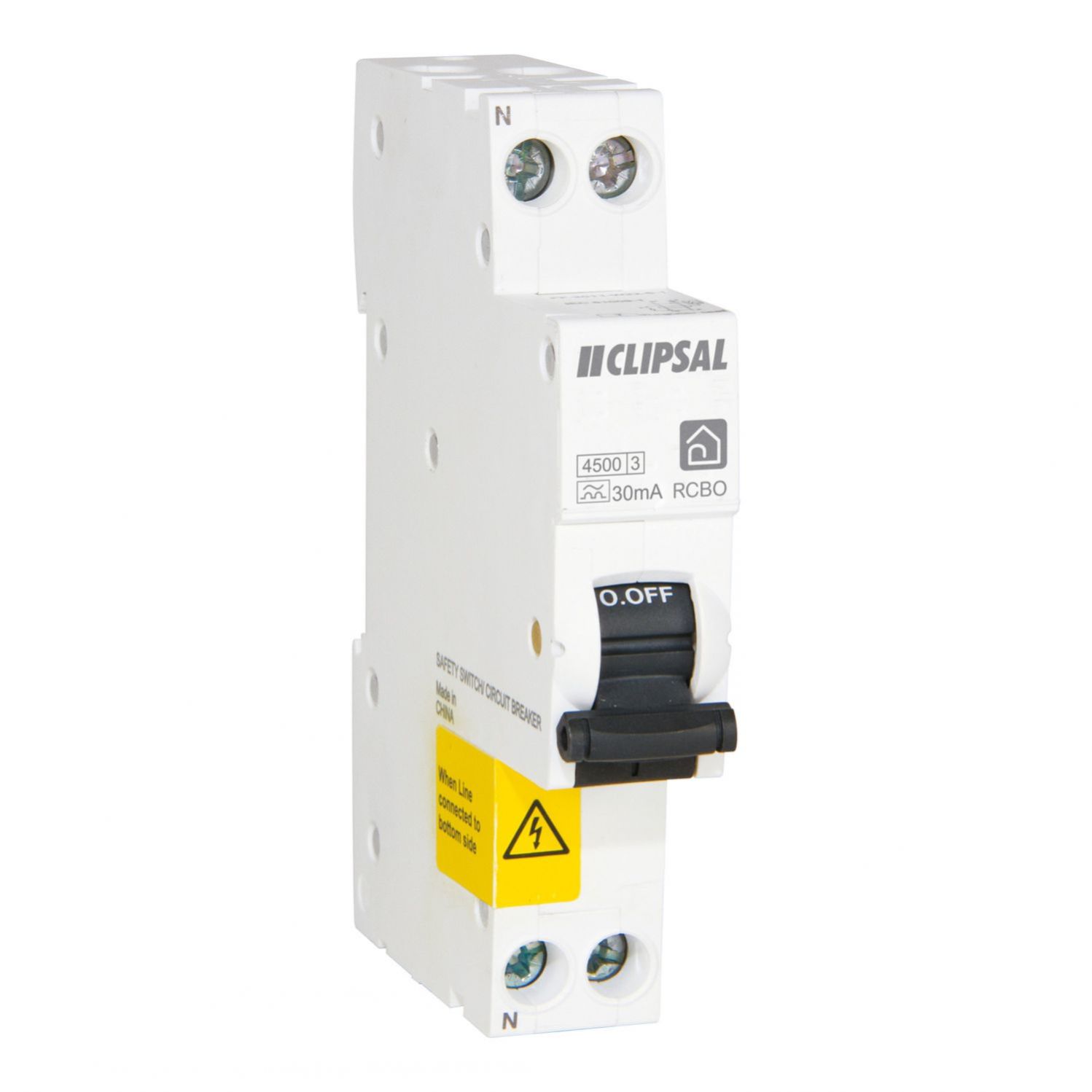

The RCBO integrates the functions of a Miniature Circuit Breaker (MCB) for overload and short-circuit protection with a Residual Current Device (RCD) for earth leakage protection, all in one device.
16A Rated Current
Protects circuits with a continuous current of up to 16 Amps, making it ideal for smaller circuits in residential homes and light commercial installations.
Type A RCD
The Type A RCD detects both AC and pulsating DC earth leakage currents, ensuring compatibility with modern appliances that generate these leakage currents.
C Curve Tripping
The C Curve provides protection for devices with moderate inrush currents, like motors, without unnecessary tripping.
4.5kA Short-Circuit Breaking Capacity
Offers robust protection against short-circuit faults, capable of interrupting faults up to 4.5kA.
Earth Leakage Sensitivity: 30mA
Disconnects the circuit when the leakage current exceeds 30mA, offering effective protection against electric shock hazards.
Slim, Space-Saving Design
The device is 18mm wide (1 module), ideal for compact installations in residential switchboards.
DIN Rail Mounting
Easily mounts on standard 35mm DIN rails, making installation quick and secure.
Lockable Toggle
The toggle switch can be locked in the OFF position, adding an extra layer of safety during maintenance.
Compliance with Standards
Compliant with AS/NZS 61009.1 standards, ensuring suitability for use in Australian and New Zealand electrical installations.
Operating Temperature Range:
Functions reliably in temperatures ranging from -5°C to +40°C.
Compact and Lightweight
Weighing only about 140 grams, it is easy to handle and install.
