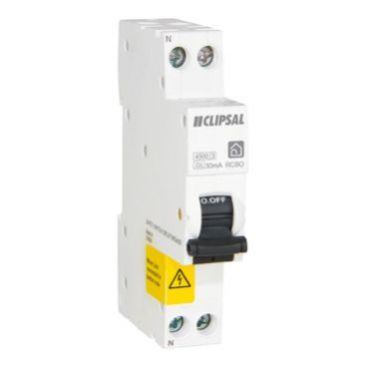

Dual Protection in One Device
Combines Miniature Circuit Breaker (MCB) and Residual Current Device (RCD) functions to protect against overload, short-circuit, and earth leakage faults.
Rated Current: 20A
Designed to protect circuits with a continuous current of up to 20 Amps, suitable for general power and lighting circuits.
Single Pole + Neutral (1P+N)
Offers protection for the active conductor, with internal switching of the neutral, providing comprehensive circuit isolation.
30mA Earth Leakage Sensitivity
Quickly disconnects the circuit when leakage exceeds 30mA, helping prevent electric shocks and fire risks.
Type A Protection
Detects both AC and pulsating DC residual currents – suitable for modern appliances like washing machines, dishwashers, and power tools.
C Curve Tripping Characteristics
Handles moderate inrush currents from devices like motors and LED lighting without nuisance tripping.
6kA Short-Circuit Breaking Capacity
Able to safely interrupt short-circuit currents up to 6000 Amps, ensuring robust protection even in fault conditions.
Compact, Space-Saving Design
Only 18mm wide, fits into standard DIN rail enclosures, ideal for modern switchboards and distribution panels.
DIN Rail Mounting
Standard 35mm DIN rail mounting for quick and secure installation in switchboards.
Lockable Toggle
Toggle handle can be padlocked in the OFF position for added safety during maintenance.
Visual Indicator
Clear ON/OFF position indicator enhances operational visibility and ease of use.
Australian Standards Compliant
Complies with AS/NZS 61009, ensuring suitability for Australian electrical installations.
Environmentally Rated
Designed to operate in ambient temperatures from -5°C to +40°C, suitable for most indoor environments.
| Parameter |
Specification |
| Brand |
Clipsal by Schneider Electric |
| Model Number |
4RCBE220/30S |
| Series |
ResiMAX |
| Product Type |
RCBO (Residual Current Breaker with Overcurrent) |
| Poles |
1P+N (Single Pole + Neutral) |
| Rated Current (In) |
20 Amps |
| Earth Leakage Sensitivity (IΔn) |
30 mA |
| Tripping Curve |
C Curve |
| Residual Current Type |
Type A (AC + Pulsating DC detection) |
| Rated Operational Voltage (Ue) |
240V AC, 50/60 Hz |
| Rated Insulation Voltage (Ui) |
400V AC |
| Short-Circuit Breaking Capacity |
6 kA |
| Rated Impulse Withstand Voltage |
4 kV |
| Mounting Type |
35mm DIN Rail |
