Zigbee to IP Connectivity
The hub facilitates communication between Zigbee devices and your home network, allowing for seamless integration and control.
Remote Control via Wiser by SE App
Manage and monitor your smart home devices from anywhere using the Wiser by SE mobile application.
Voice Control Integration
The hub supports voice commands, enabling hands-free control of your smart home devices.
Automation and Scheduling
Create custom automations and schedules to enhance convenience and energy efficiency within your home.
features:

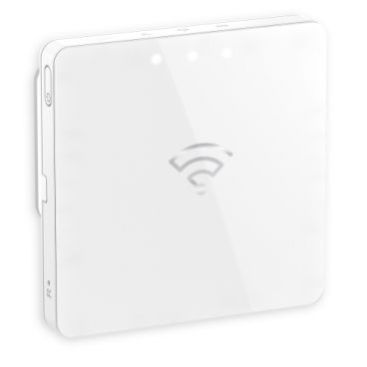

Compact and Modern Design
With dimensions of 86mm x 86mm x 34mm, the hub features a sleek white finish that complements modern interiors.
Mounting: Install the hub on a flat surface or mount it on a wall using the provided mounting hardware.
Powering Up: Connect the hub to a power source using the micro USB cable or the 2-pin terminal block for 12V DC power supply.
Network Connection: Connect the hub to your home network via the Ethernet port or configure Wi-Fi settings through the Wiser by SE app.
Device Pairing: Open the Wiser by SE app, follow the in-app instructions to pair the hub with your Zigbee-enabled devices.
Configuration: Set up automations, scenes, and voice control preferences within the Wiser by SE app to customize your smart home experience
| Feature |
Specification |
| Product Code |
CLP501902 |
| Voltage |
5V DC, <1A or 12V DC, <0.5A |
| Wireless Protocol |
Zigbee (2.4–2.4835 GHz) |
| Ethernet Port |
10/100BASE-T |
| Power Supply |
Micro USB or 2-pin terminal block for 12V DC power supply |
| Local Signaling |
3 LEDs (white) |
| Ambient Temperature |
0–40°C |
| Relative Humidity |
10–90% (non-condensing) |
| Protection Rating |
IP20 (Indoor use only) |
| Compliance Standards |
EN 62368-1, IEC 62368-1, CE, RoHS, REACH |
