Zigbee 3.0 Connectivity
– Enables smart control of blinds or shutters through the Wiser Hub and the Wiser by SE app.
Relay Locking Mechanism
– Prevents simultaneous activation of up/down controls to avoid motor damage.
Overload and Short-Circuit Protection
– Built-in safeguards protect the module and connected motor from electrical faults.
Multi-Switch Support
– Compatible with up to 10 mechanical double push-button switches for flexible local control.
Compact, Concealed Design
– Fits behind standard wall switches or inside mounting boxes for a clean, hidden installation.
features:
Smart Integration: Transforms conventional push-button switches into connected devices, allowing control via the Wiser by SE mobile app or directly through the switch.
Relay Locking Mechanism: Features mechanically and electronically locked relay contacts to prevent simultaneous triggering, ensuring safe operation of the connected blinds or shutters.
Overload Protection: Equipped with electronic overload, overheating, and short-circuit protection to safeguard both the module and connected devices.
Extended Control Options: Supports remote control with up to 10 mechanical double push-button switches, providing flexibility in controlling the connected blinds or shutters
| Feature |
Specification |

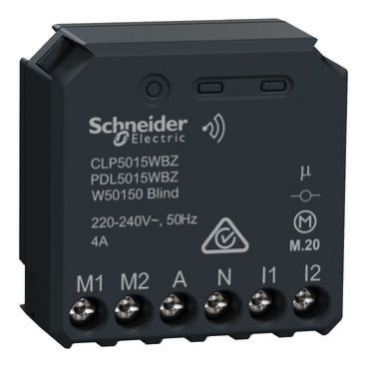

| Product Code |
CLP5015WBZ |
| Voltage |
220–240V AC, 50/60 Hz |
| Rated Current |
4 A |
| Load Type |
Motor: 500 W at 230 V AC |
| Control Type |
Push-button, mobile application |
| Communication Protocol |
Zigbee 3.0 certified |
| Frequency Range |
2405–2480 MHz |
| Max. Radio Power |
<10 mW |
| Protection Type |
16 A circuit breaker |
| IP Rating |
IP20 (Indoor use only) |
| Operating Temperature |
0–35°C |
| Neutral Conductor |
Required |
| Mounting |
Installation box, wall-mounted |
| Dimensions (WxHxD) |
43 x 43 x 22 mm |
| Standby Consumption |
Max. 0.3 W |
