Smart Integration with Push-Button Switches
Transforms conventional push-button switches into connected devices, enabling control via the Wiser by SE mobile app or directly through the switch.
Wide Load Compatibility
Supports a variety of lighting types, including dimmable LEDs (up to 150W), compact fluorescent lamps (up to 200W), incandescent lamps (up to 200W), halogen lamps (up to 200W), and low-voltage halogen lamps with electronic transformers (up to 200W).
Overload and Short-Circuit Protection
Equipped with electronic overload, overheating, and short-circuit protection to safeguard both the module and connected devices.
Zigbee 3.0 Connectivity
Operates on Zigbee (2.4 GHz) protocol, ensuring reliable communication within your smart home network.
features:
Flexible Control Options
Offers multiple control methods, including the Wiser by SE mobile app, voice commands, and traditional push-button operation.
Mounting: Install the dimmer mechanism into a standard Iconic grid plate with 84mm fixing centers.
Wiring: Connect the device using a 2-wire configuration, ensuring proper connections for live and load terminals.
Pairing with Wiser Hub: Use the Wiser by SE app to pair the dimmer with your Wiser Hub, following the in-app instructions for seamless integration.
Control Configuration: Set up control options, including voice assistants and automation routines, through the Wiser by SE app.
Feature |
Specification |

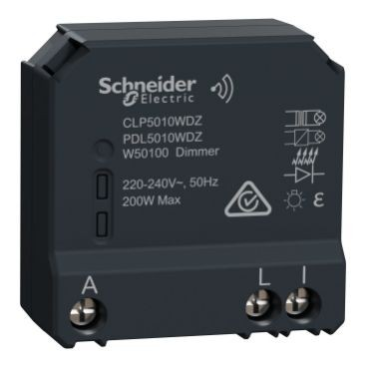

Product Code |
CLP5010WDZ |
Voltage |
220–240V AC, 50 Hz |
Load Ratings |
Dimmable LED: 0–150W; Incandescent/Halogen/Compact Fluorescent: 0–200W at 240V |
Wireless Protocol |
Zigbee (2.4 GHz) |
Control Methods |
Wiser by SE app, voice commands, push-button |
Protection Features |
Overheating, short-circuit, overcurrent |
Environmental Rating |
IP20 (Indoor use only) |
Material |
Plastic housing |
Mounting |
Flush, clip-in (84mm fixing centers) |
Dimensions (WxHxD) |
43mm x 43mm x 22mm |
