Zigbee 3.0 Connectivity
Enables seamless integration with the Wiser Hub and other Zigbee-compatible devices, facilitating reliable communication within your smart home ecosystem.
Wide Load Compatibility
Supports various load types, including:
Dimmable LED lighting drivers: 10 A
LED lighting drivers (non-dimmable): 10 A
Electronic transformers: 10 A
Medium voltage halogen lamps: 10 A
Linear fluorescent ballasts: 10 A
Inductive loads: 6 A (cos φ = 0.6)
Resistive loads: 15 A
Motors: 5 A
Momentary Switch Integration
Compatible with up to 10 momentary push-button switches, allowing for flexible local control configurations.
Overload and Thermal Protection
Equipped with built-in safeguards to protect against overheating and electrical faults, ensuring safe operation of connected devices.
features;
Indoor Installation
Designed for indoor use, the module mounts behind standard switch plates or within installation boxes, preserving the aesthetic of your existing switchgear.
Mounting: Install the module behind a standard momentary push-button switch plate or within an installation box, ensuring proper alignment and secure fitting.
Wiring: Connect the module using a 3-wire configuration, ensuring proper connections for live, neutral, and load terminals.
Pairing with Wiser Hub: Use the Wiser by SE app to pair the module with your Wiser Hub, following the in-app instructions for seamless integration.
Control Configuration: Set up control options, including voice assistants and automation routines, through the Wiser by SE app.
Feature |
Specification |

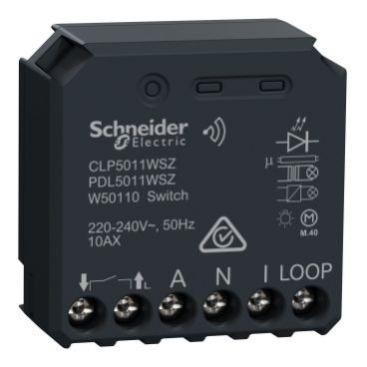

Product Code |
CLP5011WSZ |
Voltage |
220–240V AC, 50 Hz |
Load Ratings |
Dimmable LED: 10 A; Non-dimmable LED: 10 A; Electronic Transformer: 10 A; Halogen: 10 A; Fluorescent: 10 A; Inductive: 6 A; Resistive: 15 A; Motor: 5 A |
Wireless Protocol |
Zigbee 3.0 (2.4 GHz) |
Control Methods |
Wiser by SE app, voice commands, momentary push-button switches |
Protection Features |
Overload, thermal protection |
Environmental Rating |
Indoor use only |
Material |
Plastic housing |
Mounting |
Flush, behind switch plate or within installation box |
