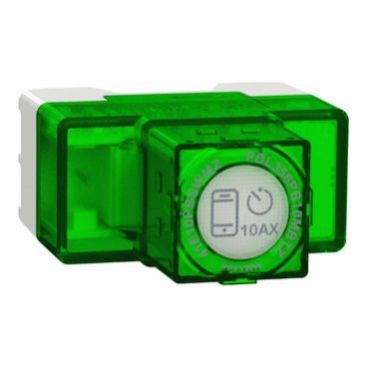

A 10AX push-button switch that offers flexibility, the Clipsal Iconic Wiser Connected Smart Switch (41E10PBSWMZ-VW), is ideal for modern smart homes. This switch is part of the Clipsal Iconic series and is compatible with Bluetooth Low Energy (BLE) and Zigbee protocols. This means you can use it traditionally on the wall, operate it using your voice, or control it via the Wiser by SE application. Its ControlLink feature makes it especially useful for managing exhaust fans and lighting through multiway switching.
Key Features:
Smart Connectivity: It works with BLE and is primarily based on Zigbee, which allows customizable interactions with the Wiser Hub and app for automation and remote control.
Control options include using the Wiser app, a physical button, or voice commands from assistants like Google Assistant and Amazon Alexa.
With the ControlLink feature, you can achieve dimming and multiway switching in combinations of up to five ways.
Load Compatibility:
Maximum Resistive Load: 15
Dimmable and non-dimmable LED drivers can handle loads of up to 10
Compatible with linear fluorescent ballasts, MV halogen lamps, and electronic transformers: up to 10
Exhaust fans and inductive loads can go up to 6A at a power factor of 0. 6
Suitable for motors: five or more
Design and Installation:
Mounting: Flush mount using clip-in fixtures
IP Rating: IP20, suitable for indoor use
Three-wire setup for wiring
Additional Features:
LED Indicator: Provides visual feedback on operational status
Timer and Scheduling: Use the Wiser app to set timers and schedules for automatic control.
Environmental Compliance: Meets RoHS standards and is mercury-free
This smart switch merges traditional controls with modern automation features and is ideal for homeowners wishing to upgrade their electrical fittings with smart technologies. Its compatibility with the Clipsal Iconic line ensures a consistent appearance across all electrical fixtures in your home.
| Feature |
Specification |
| Product Code |
41E10PBSWM-VW |
| Device Type |
Push Button Smart Switch Mechanism |
| Load Type |
10A resistive, 6A inductive, 5A motor, 10A LED driver, 10A electronic transformer |
| Operating Voltage |
220–240V AC, 50 Hz |
| Control Type |
Push-button, mobile app, multi-way via ControlLink |
| Wireless Technology |
Bluetooth Low Energy (BLE) |
| Wiring Configuration |
3-wire |
| Mounting Type |
Flush mount with 84 mm fixing center |
| Ingress Protection |
IP20 |
| Operating Temperature |
-10°C to +50°C |
| Humidity Range |
5%–90% RH, non-condensing |
