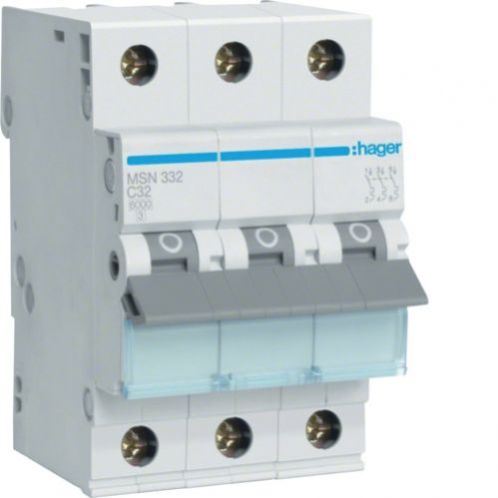

Three-Phase Protection (3P):
Designed for three-phase circuits, the MSN332 offers simultaneous disconnection across all phases, enhancing safety and system reliability.
6 kA Short-Circuit Breaking Capacity:
Can interrupt fault currents up to 6,000A, protecting equipment and wiring from electrical damage.
C-Curve Tripping Characteristic:
Optimized for circuits with moderate inrush currents, such as those with lighting loads, motors, or small machinery.
Compact 3-Module Width:
Fits neatly into distribution boards with DIN rail mounting, occupying just three standard modules.
Wide Operating Temperature Range:
Performs reliably from -25°C to +70°C, making it suitable for various commercial and industrial environments.
FEATURES:
Secure Screw Terminals:
Provides strong electrical connections, reducing the risk of hot spots or loose wiring.
Dual Protection Mechanism:
Protects against both overload and short-circuit conditions, ensuring comprehensive safety.
Long-Lasting Performance:
Supports 4,000 electrical operations and 20,000 mechanical cycles, making it suitable for frequent switching and durable use.
Certified and Compliant:
Meets IEC 60898-1 standards and is RoHS compliant, ensuring both safety and environmental responsibility.
| Parameter |
Specification |
| Product Code |
MSN332 |
| Type |
Miniature Circuit Breaker (MCB) |
| Number of Poles |
3P (Three Poles) |
| Rated Current (In) |
32 A |
| Tripping Curve |
C-curve (delayed tripping for inrush) |
| Short-Circuit Breaking Capacity (Icn) |
6,000 A (6 kA) |
| Rated Operational Voltage (Ue) |
415 V AC |
| Rated Insulation Voltage (Ui) |
500 V |
| Rated Impulse Withstand Voltage (Uimp) |
4,000 V |
| Operating Temperature Range |
-25°C to +70°C |
| Storage Temperature Range |
-25°C to +80°C |
| Mounting Type |
DIN Rail (3 modules wide) |
| Connection Type |
Screw terminals |
| Protection Index (IP) |
IP20 (when enclosed) |
