1P MCB (Single Pole):

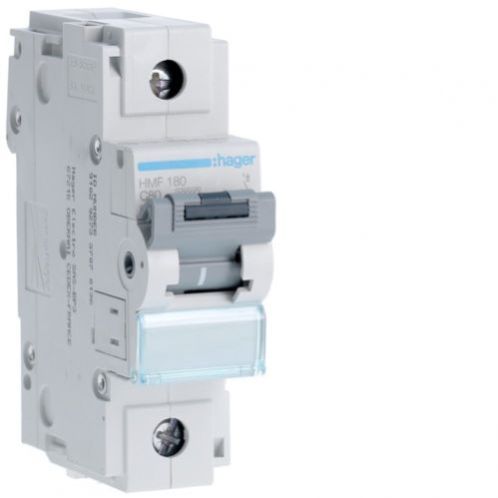

The Hager HMF180T is a single-pole circuit breaker, designed for single-phase circuits.
10 kA Short-Circuit Breaking Capacity:
The breaker can safely interrupt fault currents up to 10,000A, providing superior protection in case of short circuits.
C-curve Tripping Characteristic:
The C-curve allows the breaker to handle moderate inrush currents (such as those from motors, pumps, or lighting circuits) while providing effective overload and short-circuit protection.
Wide Operating Temperature Range:
The MCB operates within a temperature range of -25°C to +70°C, making it suitable for use in a variety of environmental conditions without compromising performance.
FEATURES:
DIN Rail Mounting:
The Hager HMF180T is designed for DIN rail mounting, offering easy and secure installation in standard electrical panels.
Screw Terminals for Secure Connections:
Equipped with screw terminals, the breaker ensures reliable connections that minimize the risk of loose wiring or connection issues.
Overload and Short-Circuit Protection:
This MCB provides comprehensive overload and short-circuit protection, ensuring that circuits and equipment are safe from damage caused by abnormal current flow.
1.5-Module Width Design:
The breaker features a 1.5-module width design, which makes it slightly wider but allows for easy installation while still saving space in electrical panels.
RoHS Compliant:
The Hager HMF180T is RoHS compliant, ensuring that it adheres to environmental regulations for reducing hazardous substances in electrical equipment.
Electrical Endurance:
The breaker is designed for up to 4,000 electrical cycles, ensuring long-lasting reliability and performance over time.
| Parameter |
Specification |
| Product Code |
HMF180T |
| Device Type |
Miniature Circuit Breaker (MCB) |
| Number of Poles |
1P (Single Pole) |
| Rated Current (In) |
80 A |
| Tripping Curve |
C-curve (delayed tripping for inrush) |
| Short-Circuit Breaking Capacity (Icn) |
10 kA |
| Rated Operational Voltage (Ue) |
240/415 V AC |
| Rated Insulation Voltage |
500 V |
| Rated Impulse Withstand Voltage |
6 kV |
| Protection Type |
Overload and Short Circuit Protection |
| Mounting Type |
DIN Rail (1.5 module width) |
| Connection Type |
Screw terminals |
| Operating Temperature Range |
-25°C to +70°C |
| Storage Temperature Range |
-25°C to +80°C |
| Ingress Protection (IP) |
IP20 (Protection against solid objects ≥ 12 mm) |
| Complies with Standards |
IEC 60898-1, IEC 60947-2, RoHS compliant |
| Electrical Endurance |
4,000 cycles |
| Mechanical Endurance |
20,000 operations |
| Dimensions (H x W x D) |
90 mm x 27 mm x 70 mm |
| Weight |
~75 g (typical) |
