1P MCB (Single Pole):

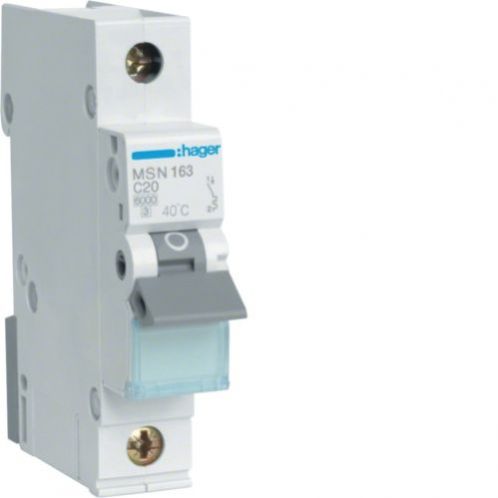

The Hager MSN163 is a single-pole circuit breaker, designed for single-phase circuits.
6 kA Short-Circuit Breaking Capacity:
The breaker can safely interrupt fault currents up to 6,000A, providing robust protection in case of short circuits.
C-curve Tripping Characteristic:
The C-curve allows the breaker to handle moderate inrush currents (such as those from motors or lighting circuits), while still ensuring proper protection from overloads and short circuits.
Wide Operating Temperature Range:
The MCB operates within a temperature range of -25°C to +70°C, making it suitable for use in a variety of environmental conditions.
FEATURES:
DIN Rail Mounting:
The Hager MSN163 is designed for DIN rail mounting, which allows for easy and secure installation in electrical panels.
Screw Terminals for Secure Connections:
It features screw terminals, ensuring stable and reliable connections that minimize the risk of loose wiring.
Overload and Short-Circuit Protection:
This MCB offers both overload and short circuit protection, safeguarding electrical circuits, wiring, and appliances from damage caused by abnormal current flow.
Compact 1-Module Width:
The breaker features a 1-module width design, which makes it space-efficient and easy to install in electrical panels without taking up excessive room.
RoHS Compliant:
The Hager MSN163 is RoHS compliant, meaning it meets regulations for restricting hazardous substances in electrical equipment, helping to protect the environment.
Electrical Endurance:
Designed for up to 4,000 electrical cycles, ensuring long-term reliability and durability during normal use.
| Parameter |
Specification |
| Product Code |
MSN163 |
| Device Type |
Miniature Circuit Breaker (MCB) |
| Number of Poles |
1P (Single Pole) |
| Rated Current (In) |
63 A |
| Tripping Curve |
C-curve (delayed tripping for inrush) |
| Short-Circuit Breaking Capacity (Icn) |
6 kA |
| Rated Operational Voltage (Ue) |
240/415 V AC |
| Rated Insulation Voltage |
500 V |
| Rated Impulse Withstand Voltage |
4 kV |
| Protection Type |
Overload and Short Circuit Protection |
| Mounting Type |
DIN Rail (1 module width) |
| Connection Type |
Screw terminals |
| Operating Temperature Range |
-25°C to +70°C |
| Storage Temperature Range |
-25°C to +80°C |
| Ingress Protection (IP) |
IP20 (Protection against solid objects ≥ 12 mm) |
