1P MCB (Single Pole):

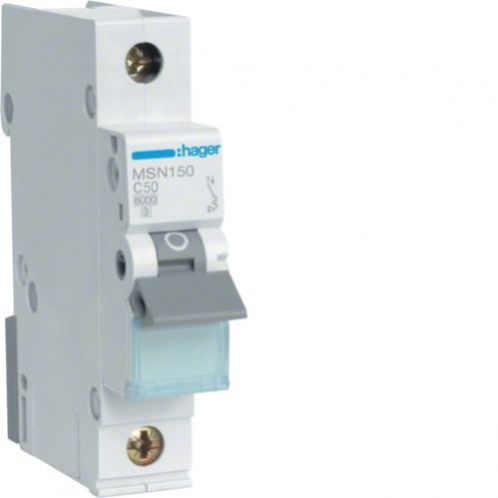

The Hager MSN150 is a single-pole circuit breaker, providing protection for single-phase circuits.
6 kA Short-Circuit Breaking Capacity:
The breaker can safely interrupt fault currents up to 6,000A, offering robust protection during fault conditions.
C-curve Tripping Characteristic:
The C-curve tripping characteristic allows it to handle moderate inrush currents, such as those found in circuits with motors or lighting, while still offering effective protection against overloads and short circuits.
Wide Operating Temperature Range:
The MCB operates within a temperature range of -25°C to +70°C, making it suitable for use in various environments without compromising its performance.
FEATURES:
DIN Rail Mounting:
The Hager MSN150 is designed for DIN rail mounting, ensuring easy and quick installation in electrical panels.
Screw Terminals for Secure Connections:
Equipped with screw terminals, the breaker ensures a reliable, stable connection that minimizes the risk of loose wiring.
Overload and Short-Circuit Protection:
This MCB offers protection against both overload and short circuit events, ensuring the safety of electrical circuits and preventing damage to wiring and equipment.
Compact Design (1-Module Width):
The breaker features a 1-module width, allowing it to fit easily into standard electrical panel setups without taking up excessive space.
RoHS Compliant:
The Hager MSN150 is RoHS compliant, meaning it meets international standards for the restriction of hazardous substances, contributing to a safer environment.
Electrical Endurance:
The breaker is designed to endure up to 4,000 electrical cycles, providing long-lasting reliability and performance.
| Parameter |
Specification |
| Product Code |
MSN150 |
| Device Type |
Miniature Circuit Breaker (MCB) |
| Number of Poles |
1P (Single Pole) |
| Rated Current (In) |
50 A |
| Tripping Curve |
C-curve (delayed tripping for inrush) |
| Short-Circuit Breaking Capacity (Icn) |
6 kA |
| Rated Operational Voltage (Ue) |
240/415 V AC |
| Rated Insulation Voltage |
500 V |
| Rated Impulse Withstand Voltage |
4 kV |
| Protection Type |
Overload and Short Circuit Protection |
| Mounting Type |
DIN Rail (1 module width) |
| Connection Type |
Screw terminals |
| Operating Temperature Range |
-25°C to +70°C |
| Storage Temperature Range |
-25°C to +80°C |
| Ingress Protection (IP) |
IP20 (Protection against solid objects ≥ 12 mm) |
| Complies with Standards |
IEC 60898-1, RoHS compliant |
