Rated Current:
50A – Suitable for circuits requiring up to 50A of protection, ideal for larger electrical loads in industrial or commercial environments.
Number of Poles:
3 Poles – Designed for three-phase electrical systems, making it suitable for industrial and commercial power distribution.
Short-Circuit Breaking Capacity:
6 kA at 230V AC – The breaker can safely interrupt short-circuit currents up to 6 kA, providing reliable protection against electrical faults and minimizing potential damage.
Trip Curve Type C:
C Curve is suitable for general-purpose applications with moderate inrush currents, such as motors, lighting circuits, and general power circuits.
Rated Voltage:
415V AC – This circuit breaker is designed for use in three-phase AC systems, with a rated voltage of 415V, which is standard for many industrial and commercial installations.
Mounting Type:

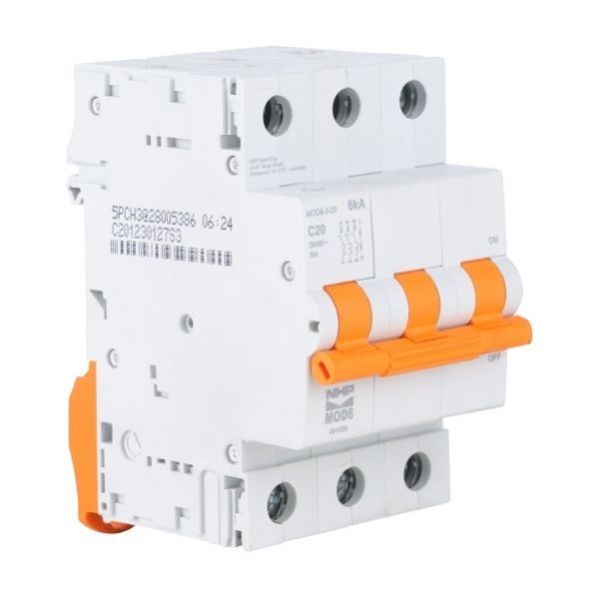

DIN Rail (35mm) – The MOD6350 is designed for easy installation on a 35mm DIN rail, which is the standard for modern electrical panels, ensuring secure and quick mounting.
Protection Rating:
IP40 – Provides protection against solid objects larger than 1mm, offering a good level of protection against dust and physical contact, typically suited for indoor environments.
Operating Temperature Range:
-25°C to +55°C – This wide temperature range ensures that the circuit breaker operates effectively in various climates and environmental conditions.
Conductor Size Compatibility:
1–25 mm² for both solid-core and multi-core wires, offering flexibility for different types of cable installations.
Certifications:
Complies with AS/NZS 60898 standards, ensuring it meets Australian and New Zealand electrical safety regulations for circuit protection.
Lockable Toggle:
Lockable toggle feature enables you to padlock the breaker in the OFF position, preventing unauthorized operation and ensuring safety during maintenance.
Trip-Free Mechanism:
The circuit breaker will trip automatically in case of overloads or short circuits, even if the toggle is manually held in the ON position, ensuring protection is always active.
Busbar Compatibility:
Compatible with pin/fork busbar combs or busbar chassis, allowing seamless integration into various electrical distribution systems.
Applications:
Ideal for general-purpose electrical circuits in three-phase systems, including lighting circuits, power distribution, and small-to-medium-sized motors in both industrial and commercial setups.
| Specification |
Value |
| Model |
MOD6350 |
| Series |
MOD6 |
| Rated Current |
50A |
| Number of Poles |
3 (Three-phase) |
| Trip Curve |
Type C (Moderate inrush currents) |
| Rated Voltage |
415V AC |
| Short-Circuit Breaking Capacity |
6 kA at 230V AC |
| Mounting Type |
DIN rail (35mm) |
| Protection Rating |
IP40 |
| Operating Temperature Range |
-25°C to +55°C |
| Conductor Size |
Solid-core: 1–25 mm²<br>Multi-wired: 1–25 mm² |
| Certifications |
AS/NZS 60898 |
| Lockable Toggle |
Yes |
