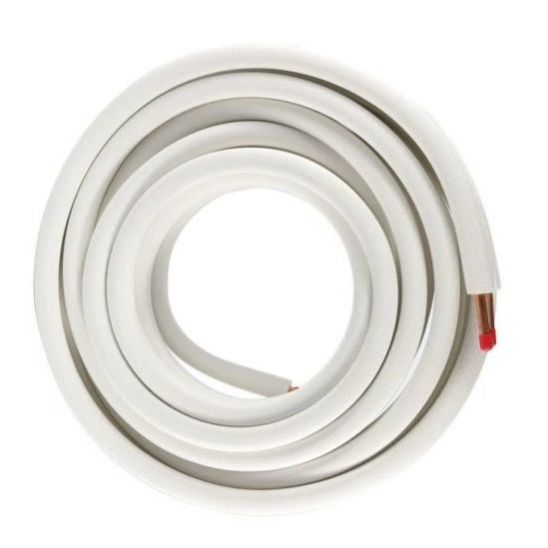

Pre-insulated line set for faster, cleaner installations.
Anti-sweat insulation: Prevents condensation in humid environments.
Flexible and easy to bend, reducing labor and need for fittings.
Compatible with high-pressure refrigerants like R-410A.
Color-coded insulation (optional): Helps quickly identify suction and liquid lines.
Environmentally friendly: CFC-free insulation and recyclable copper.
Safe for residential and commercial use, meeting fire resistance and toxicity standards.
Moisture and UV protection with optional outer sheath for outdoor exposure.
Applications:
Split-type air conditioners (1.0 – 1.5 HP)
Heat pump systems
VRV/VRF systems (small capacity units)
Light commercial and residential cooling systems
Category |
Details |
Tube Sizes |
1/4" OD (6.35mm) & 1/2" OD (12.70mm) |
Copper Type |
Soft-drawn, seamless, Type L (common for refrigeration) |
Material |
C12200 phosphorus-deoxidized copper (99.9% pure) |
Wall Thickness |
Typically 0.8 mm (varies slightly by manufacturer) |
Insulation Material |
Closed-cell PE (polyethylene), NBR, or XLPE foam |
Insulation Thickness |
9 mm (standard) or 13 mm (for high-efficiency or R-410A systems) |
Length per Coil |
15 meters (standard); 20m and 30m variants also available |
Temperature Range |
-40°C to +120°C |
Working Pressure |
Up to 700 psi (depends on thickness & standard) |
