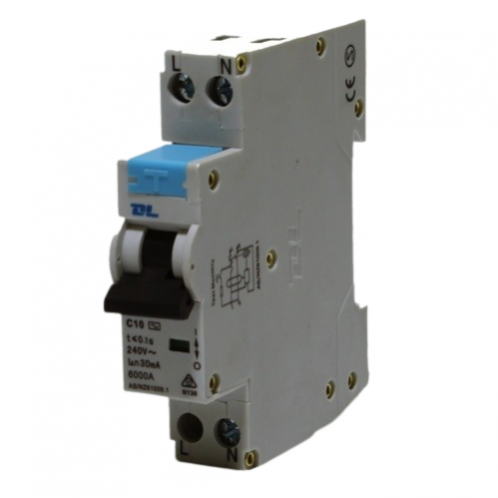

Comprehensive Protection
Combines RCD and MCB functions in one device: protects against earth leakage, overloads, and short circuits.
Overload & Short-Circuit Protection
Automatically disconnects power in the event of an overcurrent or short circuit to protect cables and connected devices.
30mA Earth Leakage Protection
Provides personnel protection from electric shock by tripping when leakage exceeds 30 milliamps.
Type A Sensitivity
Detects both AC and pulsating DC residual currents—ideal for protecting modern appliances like inverters, EV chargers, and electronics.
1P+N Configuration (Single Pole + Neutral)
Disconnects both active and neutral lines, enhancing circuit isolation and safety.
DIN Rail Mounting
Easy installation in standard consumer units or distribution boards.
Built-in Test Button
Allows users to manually check functionality, ensuring continued protection.
Wide Operating Temperature Range
Designed to work reliably in environments from -5°C to +40°C.
High Reliability & Long Life
Rated for thousands of mechanical operations for long-term use.
Standards Compliance
Manufactured to meet IEC 61009-1, ensuring it complies with global safety and performance standards.
| Parameter |
Details |
| Model |
DL RCBO 25A 1PN |
| Rated Current (In) |
25 Amps |
| Poles |
1P + N (Single Phase + Neutral) |
| Rated Voltage |
230V AC |
| Short Circuit Capacity |
4.5kA |
| Earth Leakage Sensitivity |
30mA |
| RCD Type |
Type A (AC + pulsating DC detection) |
| Tripping Curve |
Typically B or C (check model variant) |
| Test Function |
Yes |
| Mounting |
DIN Rail |
.png)
.jpg)
