Heavy-Duty Protection: Handles up to 40kA, making it suitable for areas prone to power surges.
Fast Response Time (<25 ns): Quickly reacts to transient surges, ensuring minimal impact.
Multi-Level Protection: Protects against L-N, L-G, and N-G surges.
LED Status Indicator: Easily check device status and know when to replace.
Easy Installation: DIN rail mounting allows quick integration into electrical panels.
Standards Compliance: Meets IEC 61643-11 and AS/NZS 1768 for high safety and performance.
Protects heavy machinery from electrical surges.
Prevents surge damage to servers, network devices, and computers.
Ensures uninterrupted operation of automated systems.
FEATURES:

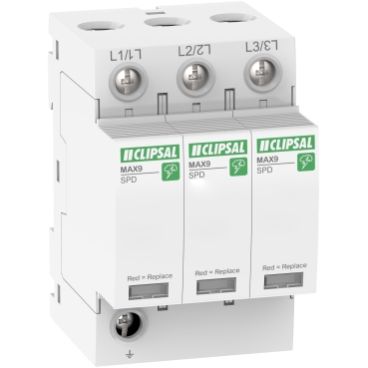

The MX9SP340 is a 3-pole surge protection device, designed to protect three-phase electrical systems from voltage surges caused by lightning strikes, grid fluctuations, or electrical faults.
This device can handle up to 40kA of surge current, making it ideal for industrial and commercial applications where heavy-duty protection is required.
The surge protection device uses MOV technology, which absorbs and dissipates excess voltage efficiently, preventing it from reaching connected electrical devices.
The MX9SP340 is designed for DIN rail mounting, making it easy to install in electrical distribution panels.
Meets IEC 61643-11 and AS/NZS 1768 standards, ensuring high reliability and safety.
| Specification |
Details |
| Product Name |
Clipsal MAX9 3P Surge Protection Device |
| Model Number |
MX9SP340 |
| Type |
Surge Protection Device (SPD) |
| Brand |
Clipsal (by Schneider Electric) |
| Current Rating |
Designed for surge protection, not a circuit breaker |
| Voltage Rating |
230V AC (Single-phase) / 415V AC (Three-phase) |
| Number of Poles |
3-Pole (3P) |
| Surge Protection Capacity |
40kA (Max Discharge Current) |
| Mounting Type |
DIN Rail Mountable |
| Response Time |
< 25 nanoseconds (ns) |
| Technology |
Metal Oxide Varistor (MOV) |
| Compliance Standards |
IEC 61643-11, AS/NZS 1768 |
