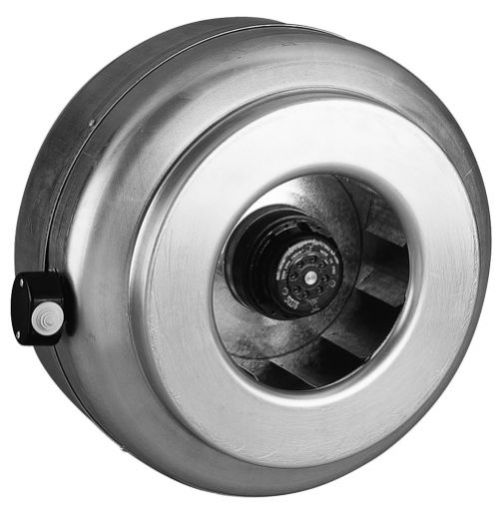

The FANTECH VentMajor VM200L is a high-performance, duct-mounted centrifugal inline fan intended for use in both supply and exhaust air systems. The fan is made of sturdy, corrosion-resistant galvanized steel, which makes it ideal for use in domestic, commercial, and light industrial settings. With a pre-fitted electrical junction box and mounting foot, the VM200L is made to connect directly to circular ducting, making installation simple and providing strong airflow and quiet operation.
Main Features:
Centrifugal impellers with backward curves for stall-free operation.
Strong galvanized steel construction for lasting durability.
Intended to be immediately connected to conventional 200mm circular ducting.
Appropriate for use with both supply and exhaust systems.
Electrical junction box that has been pre-fit for a quick and easy installation.
Standard with mounting foot.
Rated IP44 for protection.
Optional accessories:
Controllers for speed.
Flexible duct with fire rating (AS/NZS 4254).
Backdraft dampers.
grilles that are both inside and outside.
Technical Specifications:
Model |
Airflow |
Fan Speed |
Sound Level (dB @ 3m) |
Power |
Current |
Max Operating Temp |
VM-200L |
1000 m³/hr (278 L/s) |
43 rev/sec |
52 dB(A) |
170 W |
0.72 A |
60°C |
Voltage: 1-Phase, 230-240V, 50Hz
Insulation Class: Not explicitly stated; typical is Class B
