Protects against overcurrent and short circuits
Reliable 6kA breaking capacity ensures safety
Compact DIN rail design for easy installation
Complies with international safety standards
Used in home circuits for lighting, sockets, and small appliances.
Ideal for offices, shops, and small businesses with moderate power consumption.
Suitable for light industrial equipment, offering reliable circuit protection.
FEATURES:
Designed to protect one live conductor in single-phase circuits.
Handles a maximum continuous current of 25 amps, ideal for small to medium power loads such as lighting, sockets, and small appliances.
Can safely interrupt fault currents up to 6,000A, preventing damage to electrical systems.
Compatible with standard DIN rail enclosures, ensuring easy and secure installation.
Meets IEC 60898-1 and AS/NZS 60898-1 safety standards, ensuring reliability and quality.
Specification |
Details |

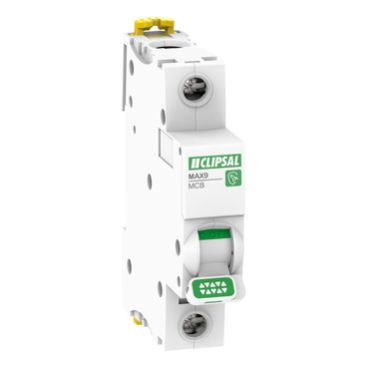

Model |
MX9MC125 |
Type |
1P Circuit Breaker (Single Pole) |
Current Rating |
25A |
Breaking Capacity |
6kA |
Voltage Rating |
240V AC |
Trip Type |
Thermal-Magnetic |
Mounting |
DIN Rail Mountable |
Operating Temperature |
-25°C to +40°C |
Compliance |
IEC 60898-1, AS/NZS 60898-1 |
Applications |
Residential, Commercial, Light Industrial |
Certification |
CE, UL, AS/NZS 60898-1 |
